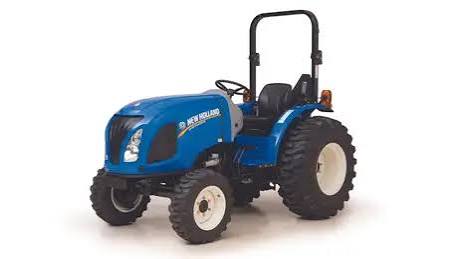

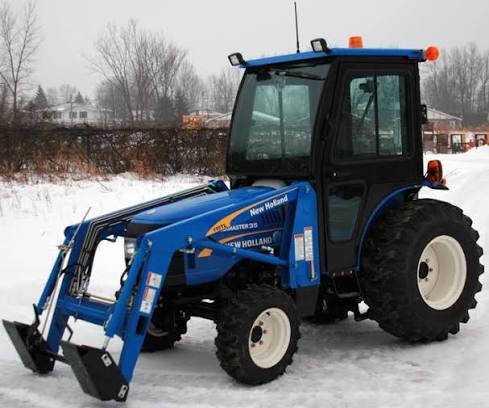

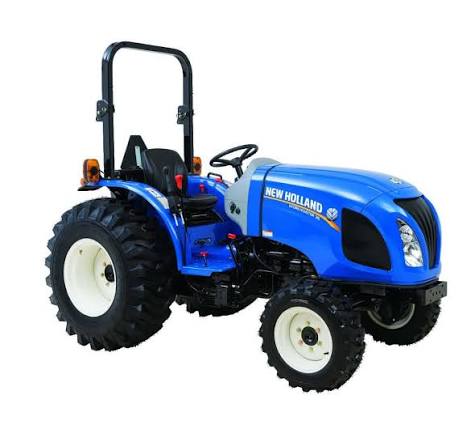

New HollandNew Holland
TC35
Tractor
21 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Engine
| Displacement | 115 in³ |
|---|---|
| Power Measured @ | 2,600 rpm |
| Gross Power | 35.0 hp |
| Number of Cylinders | 3 |
| Aspiration | Turbo |
| Alternator | 70 A |
| Fuel tank | 7.4 gal |
Hydraulic System
| Lift capacity at 24 in (610 mm) behind the ball ends | 1,433 lb |
|---|---|
| Lift capacity at ball ends | 1,808 lb |
| Implement hydraulic flow | 8.2 gal/min |
| Steering hydraulic flow Gear | 4.2 gal/min |
| Steering hydraulic flow HST | 5.3 gal/min |
| Remote valves | 1 or 2 Opt |
| Three-point hitch | Telescopic Stabilizer /Fixed Link Ends |
| Total flow Gear | 12.4 gal/min |
| Total flow HST | 13.5 gal/min |
Dimensions
| Height - Top of Cab | 88 in |
|---|---|
| Weight | 3,067 lb |
| Length | 121 in |
| Width | 67 in |
Transmission
| Brake type | Wet Multi-Disc |
|---|---|
| shuttle type | Synchro |
| Cruise control | Standard HST |
| Gear type | Synchro |
| Maximum forward speed, Gear | 14.2 mph |
| Rear diff. lock engagement | Mechanical |
| Maximum forward speedHST | 14.8 mph |
| Type/Control Choice 1 | 12x12 Gear |
| Type/Control Choice 2 | 3 Range Hydrostatic/Dual Pedal |
Production
| Series | Workmaster Series |
|---|---|
| Years Manufactured | 2,013 – 2,015 |
Power Take-Off (PTO)
| PTO speed | 540 rpm |
|---|---|
| Mid- PTO | Standard on HST / Optional on Gear |
| PTO type | Independent Electro-Hydraulic Engagement |
| PTO (HST) | 28.0 hp |
| Mid-PTO Speed | 2,000 rpm |
| PTO (Gear) | 29.7 hp |
