NPK

PH3

Breaker

All breakers/hammers

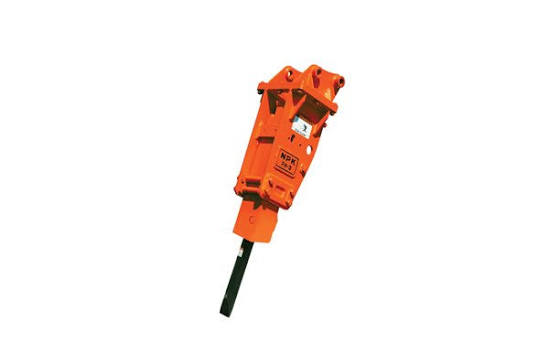

NPK PH3 Breaker
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

14 data points

General Specifications

General Specifications specifications
Excavator Tool Diameter3 in
Frequency500 - 1150 bpm
Hydraulic Operating Pressure2,175 – 2,465 psi
Impact Energy Class750 lb-ft
Minimum Circuit Relief2,965 psi
Oil Flow12.0 – 27.0 gal/min
Working Length (Excavator Tool)17 in
Working Weight (1pc Skid Steer Mount)1,025 lb
Working Weight (2pc Skid Steer Mount)1,100 lb
Working Weight (Excavator)990 lb

Carrier Weight

Carrier Weight specifications
Excavator Mount8,820 – 13,228 lb
Skid Steer Mount8,820 – 11,328 lb

Nitrogen Gas Pre-Charge

Nitrogen Gas Pre-Charge specifications
at Ambient Temp175 psi
at Operating Temp (hot)220 psi
