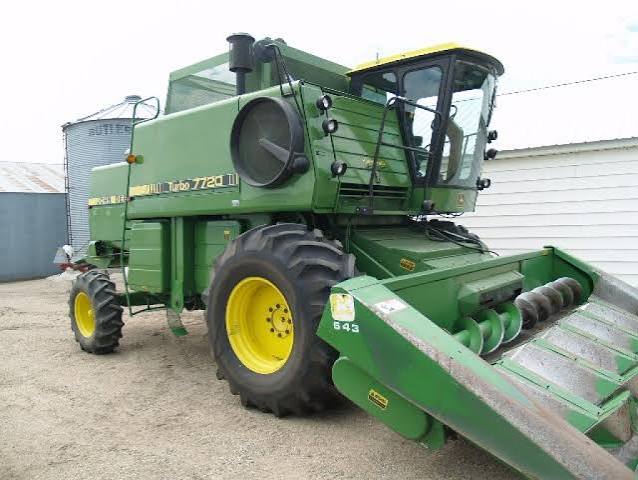

John Deere
7720
Combine
12 specifications
Python
Python Combine
- Operating Weight w/o Attachment
- 28,226 lb
- Fuel Capacity
- 144.0 gal
- Displacement
- 897 in³
- Power
- 280.0 hp
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight w/o Attachment | 28,226 lb |
|---|---|
| Fuel Capacity | 144.0 gal |
Engine
| Engine Model | IAMZ 238 AK |
|---|---|
| Displacement | 897 in³ |
| Power Measured @ | 2,000 rpm |
| Power | 280.0 hp |
Dimensions
| Wheelbase | 149 in |
|---|---|
| Overall Length | 306 in |
| Width Over Tires | 138 in |
| Height to Top of Isomount Cab | 143 in |
Cleaning System
| Total Cleaning Area | 18,950 in³ |
|---|
Grain Handling
| Grain Tank Capacity | 2,606.6 gal |
|---|---|
| Unloading Speed | 3 bu/sec |
Separating
| Separator Type | Conventional |
|---|
Threshing
| Rotor Diameter | 32 in |
|---|---|
| Rotor Length | 60 in |
| Rotor Speed - High | 1,050 rpm |
| Rotor Speed - Low | 500 rpm |
