Sakai
Gehl
1448
Asphalt Paver
12 specifications

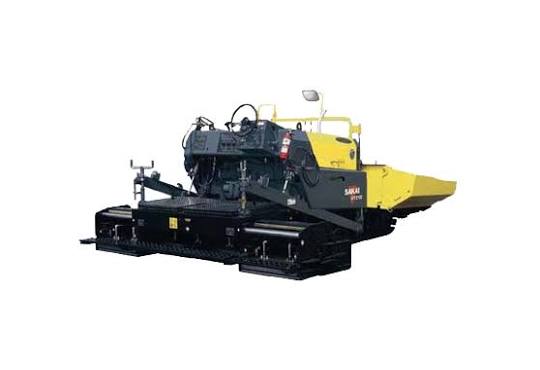

Sakai
PT310
- Operating Weight w/ Screed
- 11,795 lb
- Paving Width - max
- 122 in
- Gross Power
- 38.9 hp
- Length w/ Screed
- 176 in
1 / 5
Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight w/ Screed | 11,795 lb |
|---|---|
| Fuel Capacity | 12.2 gal |
| Hydraulic System Fluid Capacity | 18.5 gal |
Engine
| Engine Model | 4LE1 |
|---|---|
| Displacement | 133 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 38.9 hp |
Dimensions
| Length of Track on Ground | 73 in |
|---|---|
| Transport Width | 78 in |
| Transport Height | 71 in |
| Length w/ Screed | 176 in |
| Width w/ Hopper Open | 131 in |
Hopper/Paver
| Paving Width - max | 122 in |
|---|---|
| Paving Speed - max | 0.4 mph |
| Travel Speed - max | 1.5 mph |
| Auger Diameter | 9 in |
| Paving Thickness - max | 6 in |

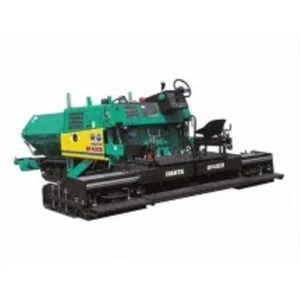

Comparable machines
