Sakai

TS200

Pneumatic Roller

Max Speed
11.9 mph
Gross Power
91.2 hp
Overall Length
16 in
Overall Width
81 in
All pneumatic rollers

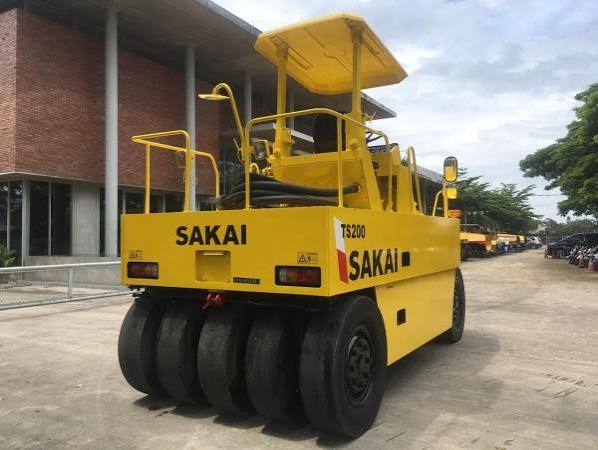

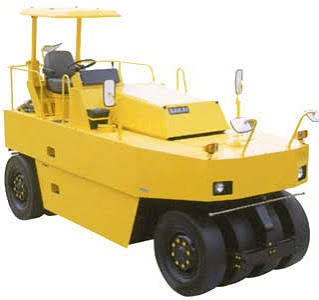

Sakai TS200 Pneumatic Roller
1 / 5
Image 1 of 5
Image: sakainet.co.jp

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Max Speed11.9 mph
Fuel Capacity25.1 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBB-6BG1 Diesel engine
Displacement396 in³
Gross Power91.2 hp

Weights

Weights specifications
Operating Weight - standard18,739 lb
Operating Weight - max ballast33,069 lb
Average Weight per Wheel - Max Ballast3,675 lb
Average Weight per Wheel - Standard2,082 lb

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase146 in
Overall Length16 in
Overall Width81 in
Height - Top of ROPS/FOPS127 in

Tires & Wheels

Tires & Wheels specifications
Number of Tires - Rear5
Number of Tires - Front4
Wheel Track/Tire Overlap1 in
Standard Tire Size9.00-20-10PR (OR) smooth tread
