Sany

QY50C

All Terrain Crane

Gross Power
305.8 hp
Max Speed - Forward
47.3 mph
Transport Width
109 in
All all terrain cranes

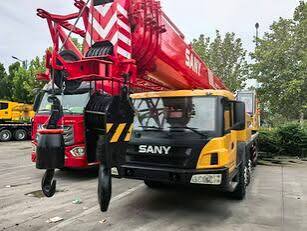

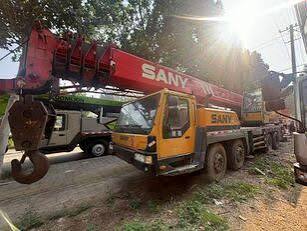

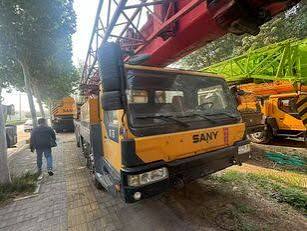

Sany QY50C All Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Tire Size12.00R20-20PR
Carrier Fuel Capacity79.3 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width109 in
Transport Height144 in
Transport Length543 in
Width w/ Outriggers Extended284 in
Upper Structure Tail Swing Radius158 in
Carrier Length457 in

Transmission

Transmission specifications
Max Speed - Forward47.3 mph

Boom

Boom specifications
Number of Sections5
Max Height @ Max Raise Angle - no jib1,674 in
Min Height @ Max Raise Angle454 in
Max Elevating Angle80 °
Swing Speed2 rpm
Min Working Radius119 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power305.8 hp
Max Torque885 lb-ft
Torque Measured @1,400 rpm
MakeSany
Power Measured @2,200 rpm
