Sany

STC250H

All Terrain Crane

Gross Power
285.7 hp
Max Lift Capacity
50,000 lb
Max Speed - Forward
49.8 mph
Transport Width
100 in
All all terrain cranes

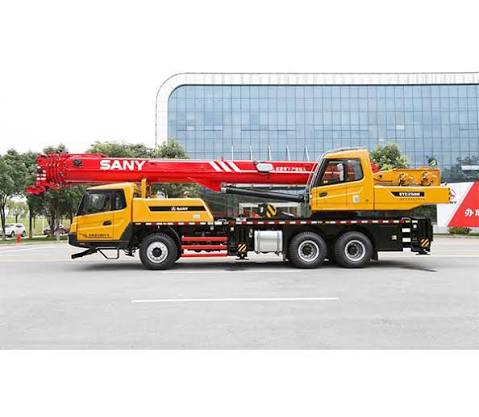

Sany STC250H All Terrain Crane
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Tire Size11.00-20
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Number of Axels3

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width100 in
Transport Height141 in
Transport Length500 in
Gradeability38.0 %
Carrier Length446 in
Angle of departure12 °
Approach Angle17 °

Transmission

Transmission specifications
Max Speed - Forward49.8 mph

Boom

Boom specifications
Max Lift Capacity50,000 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,555 in
Min Height @ Max Raise Angle414 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power285.7 hp
Max Torque774 lb-ft
Torque Measured @1,400 rpm
Power Measured @2,100 rpm
