Sumitomo

SC500-2

Crawler Crane

Power Measured @
2,100 rpm
All crawler cranes

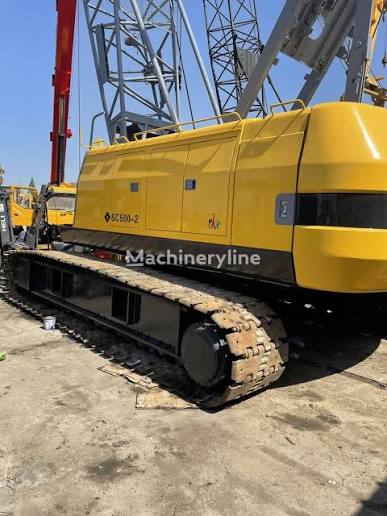

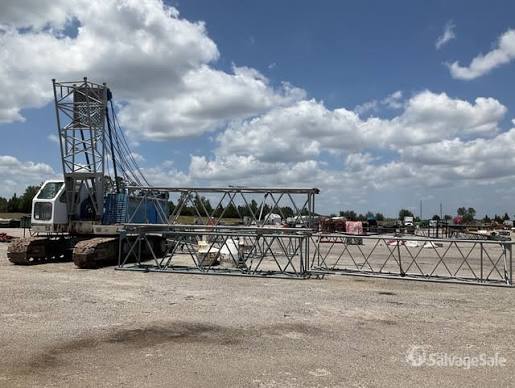

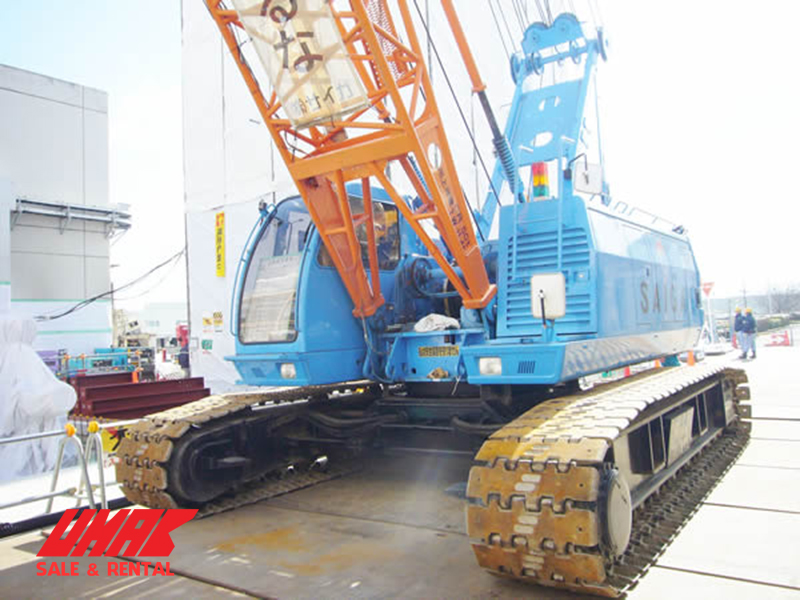

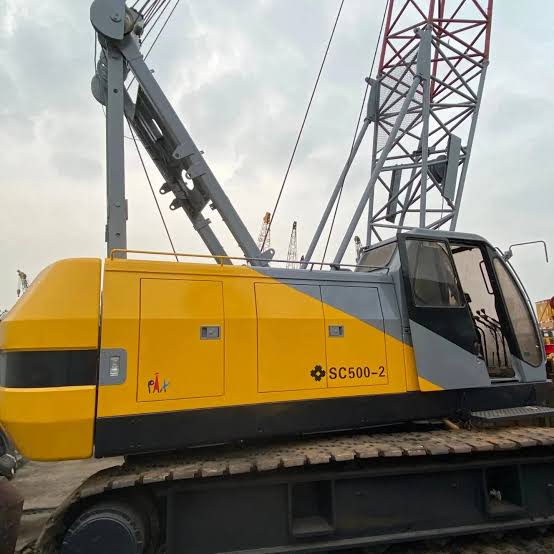

Sumitomo SC500-2 Crawler Crane
1 / 5
Image 1 of 5
Image: xecauumac.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity76.7 gal
Engine Oil Capacity79.3 gal

Engine

Engine specifications
Engine ModelHO7CT
Displacement411 in³
Power Measured @2,100 rpm
Gross Power177.6 hp
Number of Cylinders6
Torque Measured @1,600 rpm
Max Torque485 lb-ft
Engine MakeHino
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance16 in
Tail Swing Radius149 in
Transport Width131 in
Transport Height122 in

Undercarriage

Undercarriage specifications
Width of Shoes30 in
Number of Track Rollers per Side14
Ground Pressure9 psi

Boom

Boom specifications
Min Height @ Max Raise Angle481 in
Swing Speed4 rpm
Max Height @ Max Raise Angle - no jib2,040 in
Max Elevating Angle80 °
