Takeuchi

TB53FR

Mini Excavator

Operating Weight
12,430 lb
Max Digging Depth
155 in
Net Power
37.4 hp
All mini excavators

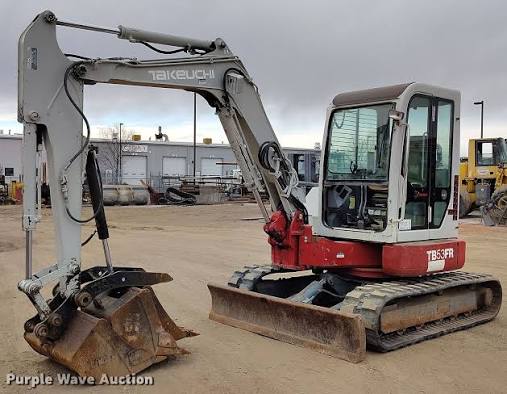

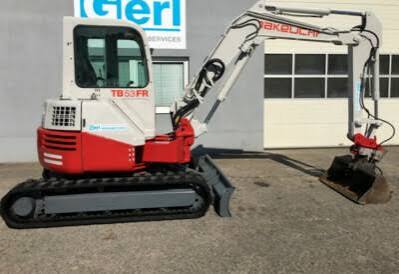

Takeuchi TB53FR Mini Excavator
1 / 5
Image 1 of 5
Image: machineryline.co.ug

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,430 lb
Hydraulic Pump Flow Capacity29.6 gal/min
Hydraulic System Relief Valve Pressure3,000 psi

Engine

Engine specifications
Engine Model4TNV88-QTB
Displacement134 in³
Power Measured @2,300 rpm
Net Power37.4 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque107 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab102 in
Tail Swing Radius42 in
Width to Outside of Tracks79 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Max Travel Speed3.2 mph
Shoe Size16 in
Number of Carrier Rollers per Side1
Drawbar Pull11,674 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth155 in
Max Reach Along Ground245 in
Max Loading Height154 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
