Terex

AC 205

All Terrain Crane

Gross Power
375.5 hp
Transport Width
109 in
All all terrain cranes

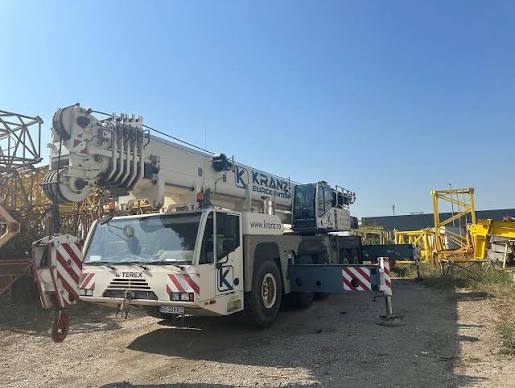

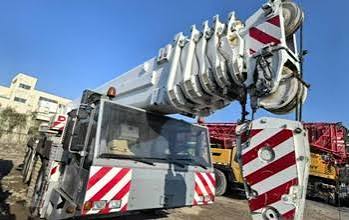

Terex AC 205 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Tire Size16.00 R 25
Carrier Fuel Capacity105.7 gal
Operating Voltage24 V
Number of Axels4

Dimensions

Dimensions specifications
Transport Width109 in
Transport Height142 in
Transport Length478 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius146 in
Carrier Length394 in

Transmission

Transmission specifications
Transmission TypeAllison automatic

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib1,969 in
Min Height @ Max Raise Angle430 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power375.5 hp
Max Torque1,309 lb-ft
Torque Measured @1,200 rpm
MakeTerex
Power Measured @2,100 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeTerex
