Terex

AC 300-6

All Terrain Crane

Gross Power
603.5 hp
Max Speed - Forward
52.9 mph
Transport Width
118 in
All all terrain cranes

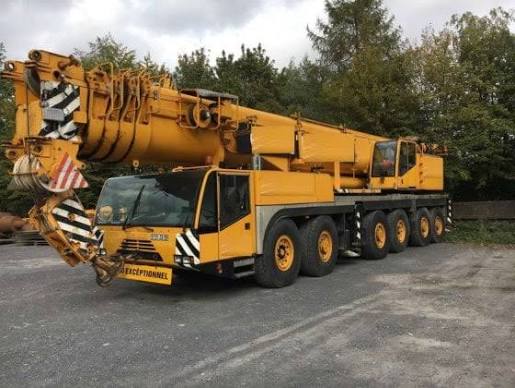

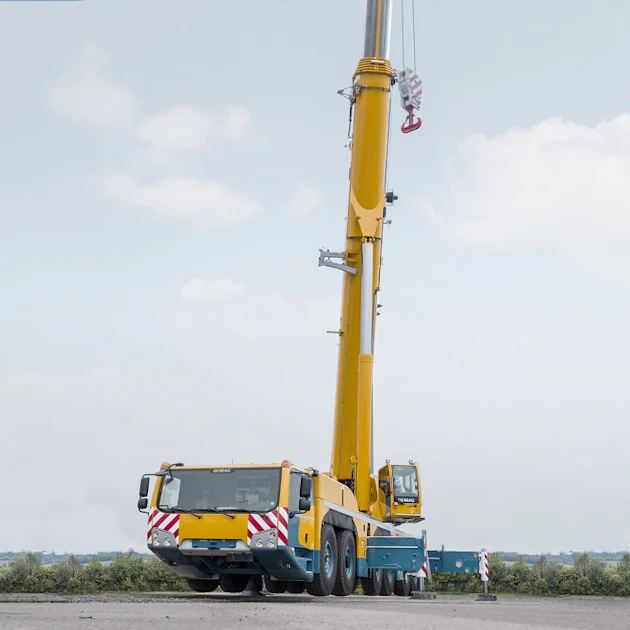

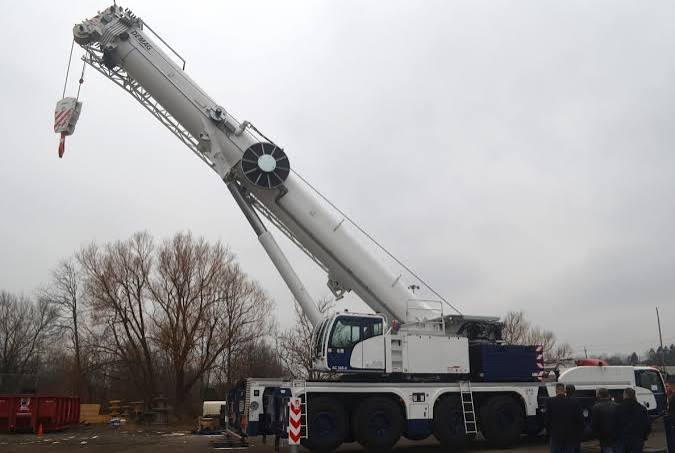

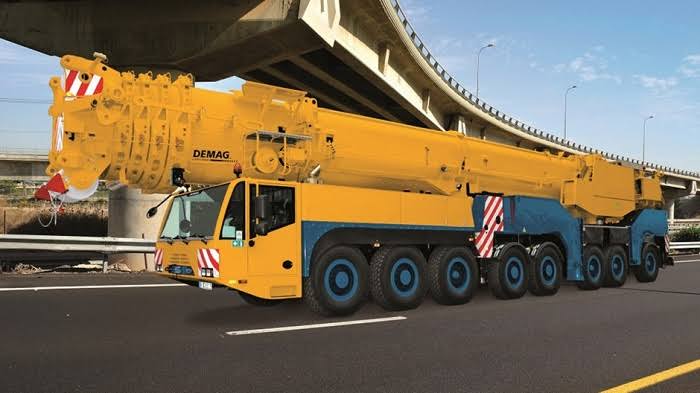

Terex AC 300-6 All Terrain Crane
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00R25
Carrier Fuel Capacity166.5 gal
Number of Axels6

Dimensions

Dimensions specifications
Transport Width118 in
Transport Height158 in
Transport Length659 in
Width w/ Outriggers Extended335 in
Upper Structure Tail Swing Radius223 in
Carrier Length589 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Transmission TypeZF AS-Tronic automatic transmission
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib2,559 in
Min Height @ Max Raise Angle709 in
Max Elevating Angle83 °
Swing Speed1 rpm
Min Working Radius119 in
Max Working Radius2,363 in
Height4,944 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power603.5 hp
Max Torque1,991 lb-ft
MakeTerex

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power275.0 hp
MakeTerex
Max Torque811 lb-ft
