Terex

AC 40

All Terrain Crane

Gross Power
275.0 hp
Max Speed - Forward
49.8 mph
Transport Width
101 in
All all terrain cranes

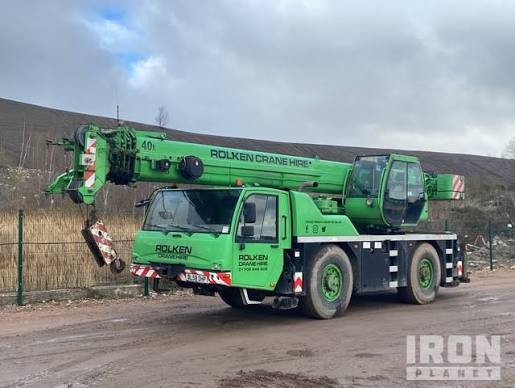

Terex AC 40 All Terrain Crane
1 / 5
Image 1 of 5
Image: india-product.global-ce.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Tire Size445/65R22.5
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Number of Axels2
Alternator Supplied Amperage80 A

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width101 in
Transport Height122 in
Transport Length348 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius126 in
Carrier Length289 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Transmission Typeautomatic transmission
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,300 in
Min Height @ Max Raise Angle410 in
Max Elevating Angle78 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius1,103 in
Height1,747 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power275.0 hp
Max Torque811 lb-ft
Torque Measured @1,300 rpm
MakeTerex
Power Measured @2,200 rpm
