Terex

AC 40-1

All Terrain Crane

Gross Power
275.0 hp
Max Speed - Forward
49.8 mph
Transport Width
101 in
All all terrain cranes

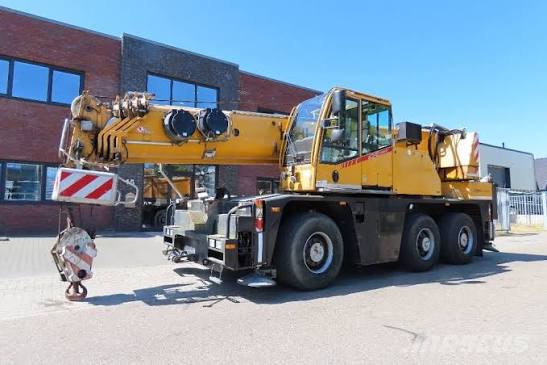

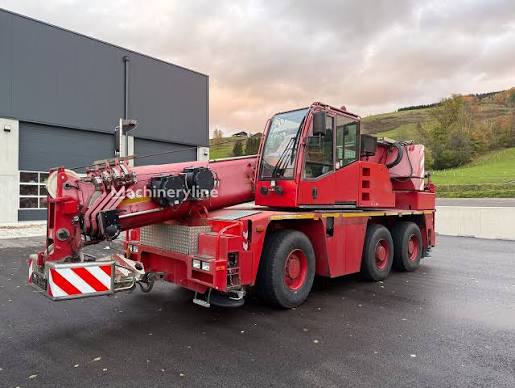

Terex AC 40-1 All Terrain Crane
1 / 5
Image 1 of 5
Image: crane-locator.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Tire Size14
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width101 in
Transport Height126 in
Transport Length339 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius121 in
Carrier Length280 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Transmission TypeAllison automatic transmission
Number of Forward Gears6
Number of Reverse Gears1

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,229 in
Min Height @ Max Raise Angle307 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power275.0 hp
Max Torque811 lb-ft
Torque Measured @1,300 rpm
MakeTerex
