Terex

AC 40-2

All Terrain Crane

Gross Power
275.0 hp
Max Lift Capacity
88,185 lb
Max Speed - Forward
49.8 mph
Transport Width
101 in
All all terrain cranes

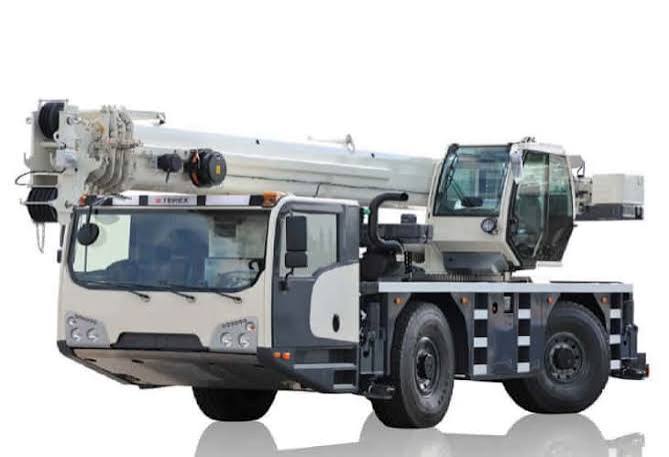

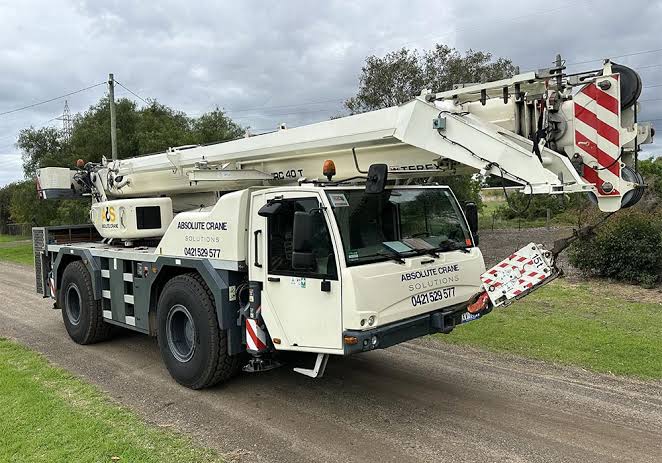

Terex AC 40-2 All Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Tire Size16.00 R 25
Carrier Fuel Capacity66.1 gal

Dimensions

Dimensions specifications
Transport Width101 in
Transport Height133 in
Transport Length421 in
Width w/ Outriggers Extended235 in
Carrier Length333 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Transmission TypeAutomated Powershift Transmission
Number of Forward Gears6
Number of Reverse Gears2

Boom

Boom specifications
Max Lift Capacity88,185 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,198 in
Min Height @ Max Raise Angle450 in
Max Elevating Angle80 °
Swing Speed2 rpm
Min Working Radius103 in
Max Working Radius1,103 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power275.0 hp
Max Torque811 lb-ft
Torque Measured @1,600 rpm
MakeTerex
Power Measured @2,200 rpm
