Terex

AC 50-1

All Terrain Crane

Gross Power
321.9 hp
Max Speed - Forward
49.8 mph
Transport Width
101 in
All all terrain cranes

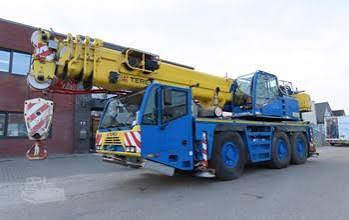

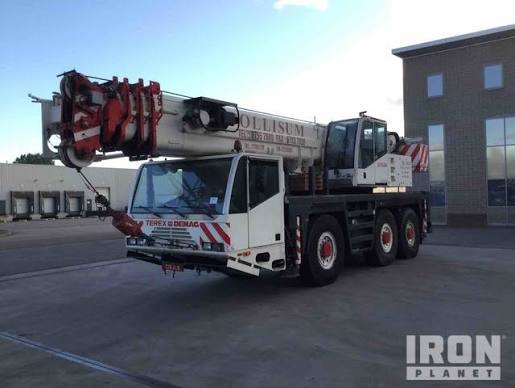

Terex AC 50-1 All Terrain Crane
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00R25
Carrier Fuel Capacity88.5 gal
Operating Voltage24 V
Number of Axels3

Dimensions

Dimensions specifications
Transport Width101 in
Transport Height139 in
Transport Length442 in
Width w/ Outriggers Extended252 in
Upper Structure Tail Swing Radius137 in
Carrier Length357 in

Transmission

Transmission specifications
Max Speed - Forward49.8 mph
Transmission Typeautomated powershift
Number of Forward Gears6
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,693 in
Min Height @ Max Raise Angle476 in
Max Elevating Angle82 °
Swing Speed2 rpm
Min Working Radius119 in
Max Working Radius1,339 in
Height2,267 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power321.9 hp
Max Torque959 lb-ft
Torque Measured @1,600 rpm
MakeTerex
Power Measured @2,200 rpm
