Terex

ATT 350

All Terrain Crane

Gross Power
233.4 hp
Max Speed - Forward
45.4 mph
Transport Width
100 in
All all terrain cranes

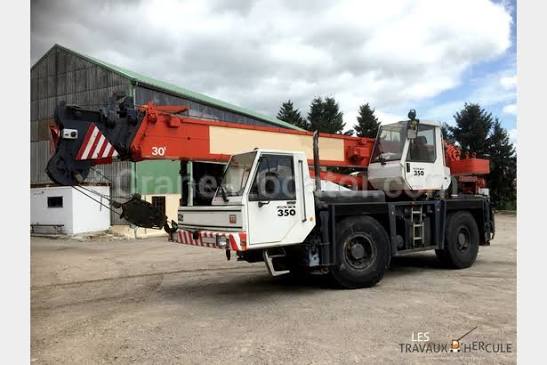

Terex ATT 350 All Terrain Crane
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Tire Size14.00 R 25
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Number of Axels2

Dimensions

Dimensions specifications
Ground Clearance17 in
Transport Width100 in
Transport Height133 in
Transport Length425 in
Width w/ Outriggers Extended235 in
Upper Structure Tail Swing Radius125 in
Carrier Length335 in

Transmission

Transmission specifications
Max Speed - Forward45.4 mph
Max Speed - Reverse26.1 mph
Transmission TypePowershift
Number of Forward Gears6
Number of Reverse Gears3

Boom

Boom specifications
Number of Sections4
Max Height @ Max Raise Angle - no jib1,198 in
Min Height @ Max Raise Angle371 in
Max Elevating Angle80 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power233.4 hp
Displacement364 in³
Max Torque553 lb-ft
Torque Measured @1,550 rpm
MakeTerex
Power Measured @2,500 rpm
