Terex

TB42

Aerial Lift

Max Platform Height
523 in
Overall Length
25 in
Overall Width
86 in
All aerial lifts

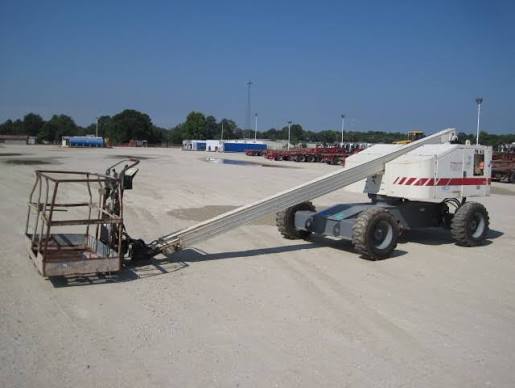

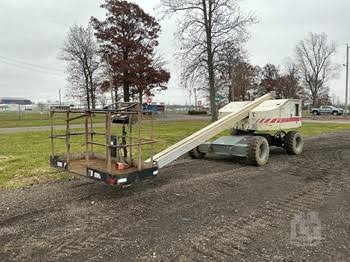

Terex TB42 Aerial Lift
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

28 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power62.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase96 in
Overall Length25 in
Overall Width86 in
Tail Swing Radius33 in
Turning Radius192 in
Gradeability35.0 %
Stowed Height85 in
Shipping weight13,050 lb
Wheel track6 in

Performance

Performance specifications
Max Speed3.1 mph
Tire Size12 x 16.5 8 P.R
Hydraulic System Fluid Capacity38.0 gal
Fuel Capacity25.0 gal
Hydraulic System Relief Valve Pressure2,500 psi
Wheel load7,350 lb
Wheel load concentrated pressure170 psi

Platform

Platform specifications
Max Platform Height523 in
Max Platform Weight Capacity650 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height595 in
Max Horizontal Reach444 in
Platform Rotation360 °
