Terex

TB44

Aerial Lift

Max Platform Height
528 in
Overall Length
311 in
Overall Width
96 in
All aerial lifts

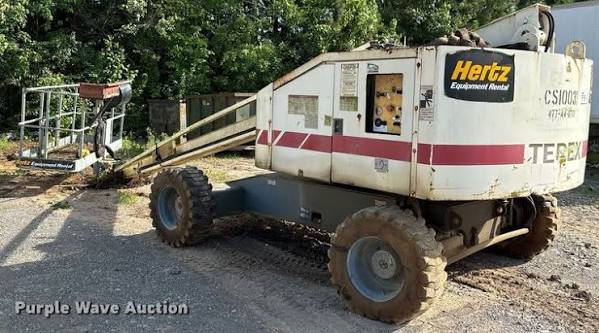

Terex TB44 Aerial Lift
1 / 5
Image 1 of 5
Image: purplewave.com

Specifications

27 data points

Engine

Engine specifications
Engine ModelLRG-423
Gross Power62.0 hp
Engine MakeFord
Fuel TypeGasoline

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase97 in
Overall Length311 in
Overall Width96 in
Tail Swing Radius33 in
Turning Radius193 in
Gradeability55.0 %
Stowed Height85,041 in
Wheel track82 in

Performance

Performance specifications
Max Speed3.3 mph
Tire Size12*16.5 8 P.R
Hydraulic System Fluid Capacity38.0 gal
Fuel Capacity25.0 gal
Hydraulic System Relief Valve Pressure2,500 psi
Wheel load7,350 lb
Wheel load concentrated pressure170 psi

Platform

Platform specifications
Max Platform Height528 in
Max Platform Weight Capacity500 lb
Platform Inner Length72 in
Platform Inner Width36 in
Max Working Height600 in
Max Horizontal Reach444 in
Platform Rotation360 °
