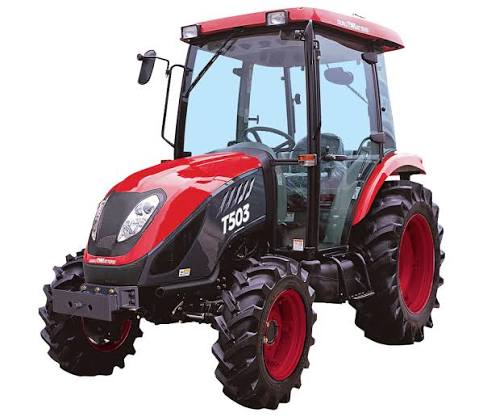

Tong Yang Mooslan
T503 CAB
- Operating Weight
- 4,608 lb
- Displacement
- 135 in³
- Power Measured @
- 2,800 rpm
- Gross Power
- 50.7 hp
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 4,608 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,106 lb |
| 3 Point Hitch Type | Cat I |
| Turning Radius | 132 in |
| Alternator Supplied Amperage | 65 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 2.3 gal |
| Hydraulic System Fluid Capacity | 9.3 gal |
| Engine Oil Capacity | 2.2 gal |
Engine
| Engine Model | C2.2 |
|---|---|
| Displacement | 135 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 50.7 hp |
| Number of Cylinders | 4 |
| PTO Power | 38.0 hp |
Hydraulic System
| Pump Flow Capacity | 14.6 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
Dimensions
| Height - Top of Cab | 101 in |
|---|---|
| Wheelbase | 77 in |
| Overall Length | 12 in |
| Tire Size | front 12-16.5R4 rear 17.5L-24R4 |
| Width Outside Frame | 64 in |
Transmission
| Max Speed | 20.8 mph |
|---|---|
| Number of Forward Gears | 16 |
| Transmission Type | sync/shuttle |
| Number of Reverse Gears | 16 |
