Tong Yang Mooslan
Fendt
209 VA
Tractor
19 specifications

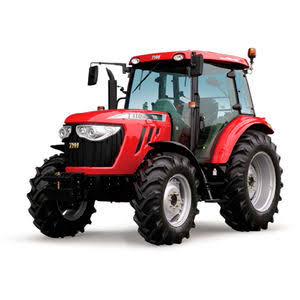

Tong Yang Mooslan
T603 CAB PS
- Operating Weight
- 5,379 lb
- Displacement
- 135 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 58.0 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 5,379 lb |
|---|---|
| Fuel Capacity | 18.5 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,529 lb |
| 3 Point Hitch Type | Cat II |
| Turning Radius | 151 in |
| Alternator Supplied Amperage | 65 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 2.4 gal |
| Hydraulic System Fluid Capacity | 11.1 gal |
| Engine Oil Capacity | 1.8 gal |
Engine
| Engine Model | C2.2T |
|---|---|
| Displacement | 135 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 58.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| PTO Power | 46.6 hp |
Hydraulic System
| Pump Flow Capacity | 15.2 gal/min |
|---|---|
| Number of Remote Control Valves | 3 |
Dimensions
| Height - Top of Cab | 102 in |
|---|---|
| Wheelbase | 83 in |
| Overall Length | 12 in |
| Tire Size | front 12-16.5R4 rear 16.9-24R4 |
| Width Outside Frame | 72 in |
Transmission
| Max Speed | 22.1 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | sync/shuttle |
| Number of Reverse Gears | 24 |
