Ursus

4022

Tractor

Operating Weight
6,294 lb
Displacement
201 in³
Gross Power
54.0 hp
All tractors

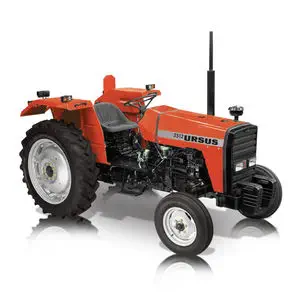

Ursus 4022 Tractor
1 / 5
Image 1 of 5
Image: agriexpo.online

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,294 lb
Fuel Capacity13.3 gal
3 Point Hitch Lift Capacity @ 24 inches2,932 lb
Tire Size Front - 2wd / 4wd7.5-16

Engine

Engine specifications
Engine Model1103C-33
Displacement201 in³
Gross Power54.0 hp
Number of Cylinders3
Max Torque164 lb-ft
PTO Power47.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.9 gal/min

Dimensions

Dimensions specifications
Wheelbase84 in
Overall Length13 in
Overall Width70 in
Height - Top of ROPS/FOPS104 in

Transmission

Transmission specifications
Max Speed15.7 mph
Number of Forward Gears8
Transmission Typemechanical with sliding gears
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size14.9R28
