Ursus
Fendt
209 VA
Tractor
19 specifications
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 6,956 lb |
|---|---|
| Fuel Capacity | 13.3 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 2,932 lb |

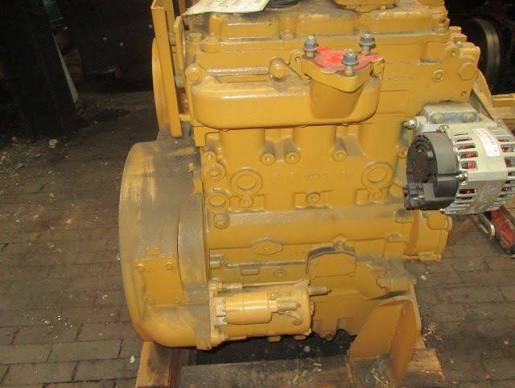

Engine
| Engine Model | 1103C-33 |
|---|---|
| Displacement | 201 in³ |
| Gross Power | 53.0 hp |
| Number of Cylinders | 3 |
| PTO Power | 46.7 hp |
Hydraulic System
| Pump Flow Capacity | 6.9 gal/min |
|---|
Dimensions
| Height - Top of Cab | 104 in |
|---|---|
| Wheelbase | 89 in |
| Overall Length | 14 in |
| Tire Size | front 9.5R24 rear 14.9R28 |
| Width Outside Frame | 102 in |
Transmission
| Max Speed | 22.3 mph |
|---|---|
| Number of Forward Gears | 8 |
| Transmission Type | mechanical with sliding gears |
| Number of Reverse Gears | 2 |
