Valtra
Fendt
209 VA
Tractor
19 specifications
1 / 5

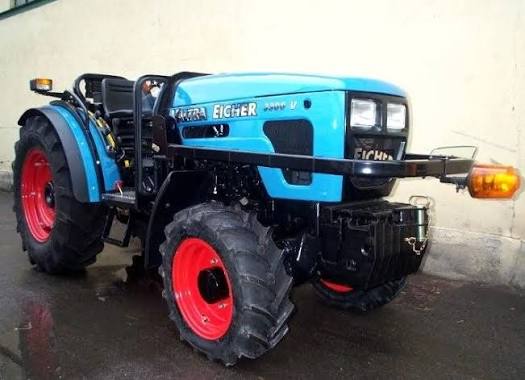

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 5,401 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 5,457 lb |
| Turning Radius | 257 in |
| Tire Size Front - 2wd / 4wd | 5.5-15 |
Engine
| Engine Model | Deutz |
|---|---|
| Power Measured @ | 2,400 rpm |
| Gross Power | 60.0 hp |
| Net Power | 60.0 hp |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,550 rpm |
| Max Torque | 127 lb-ft |
Hydraulic System
| Pump Flow Capacity | 12.5 gal/min |
|---|---|
| Number of Remote Control Valves | 1 |
Dimensions
| Overall Length | 12 in |
|---|---|
| Tire Size | 6.50-16 |
| Height - Top of ROPS/FOPS | 103 in |
| Height | 91 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 24 |
| Transmission Type | 24+24 speeds with splitter and synchronized forward reverse shuttle |
| Number of Reverse Gears | 24 |
Tires & Wheels
| Rear Tires Size | 11.2R28 |
|---|
