Versatile
New Holland
T8.010
Tractor
19 specifications

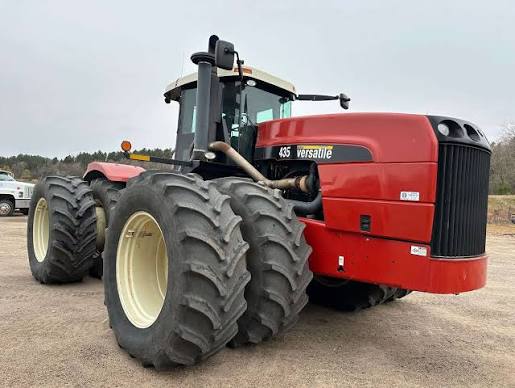

Versatile
435
- Operating Weight
- 43,500 lb
- Displacement
- 909 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 435.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 43,500 lb |
|---|---|
| Fuel Capacity | 350.0 gal |
| Alternator Supplied Amperage | 160 A |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 22.0 gal |
| Hydraulic System Fluid Capacity | 30.0 gal |
| Engine Oil Capacity | 12.7 gal |
| Front Tire Size | 710/70R42 |
| Rear Tire Size | 710/70R42 |
| Drawbar Static Vertical Load Rating | 9,000 lb |
Engine
| Engine Model | QSX15 |
|---|---|
| Displacement | 909 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 435.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Cummins |
| Stroke | 7 in |
| Bore | 5 in |
| Torque | 1,475 lb-ft |
Hydraulic System
| Pump Flow Capacity | 55.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,900 psi |
| Hydraulic System Type | Closed center load sensing |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 154 in |
| Overall Length | 299 in |
Transmission
| Number of Forward Gears | 12 |
|---|---|
| Transmission Type | Partially synchronized |
| Number of Reverse Gears | 4 |
