Volvo

L180C

Wheel Loader

Operating Weight
60,627 lb
Bucket Capacity - heaped
6.30 yd³
Gross Power
284.0 hp
Net Power
269.0 hp
All wheel loaders

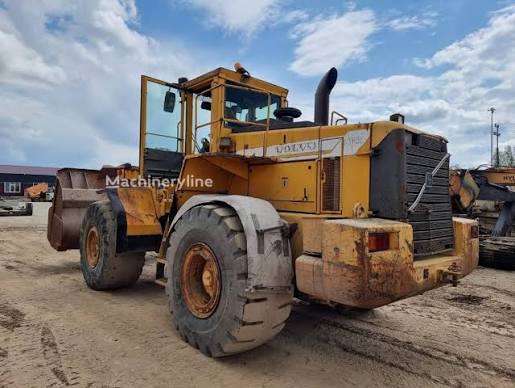

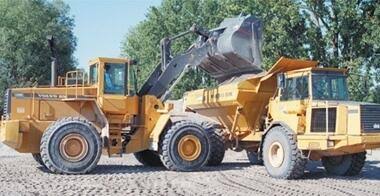

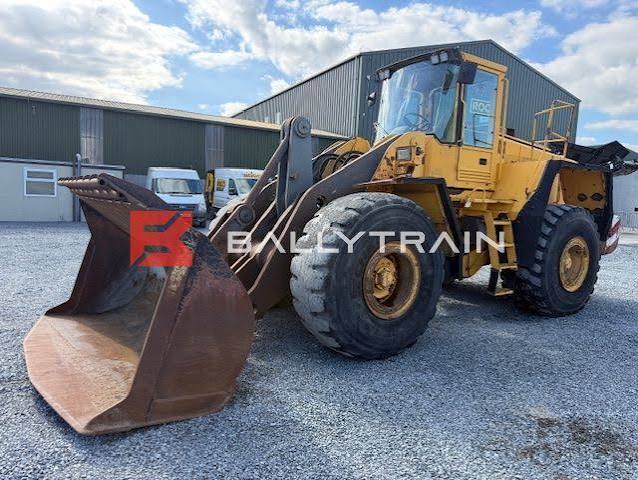

Volvo L180C Wheel Loader
1 / 5
Image 1 of 5
Image: cctrading.ie

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,627 lb
Fuel Capacity84.1 gal
Tire Size26.5R25**L3
Hydraulic System Fluid Capacity43.6 gal
Static Tipping Weight43,700 lb
Operating Voltage24 V
Turning Radius295 in
Engine Oil Fluid Capacity9.0 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity14.6 gal
Rear Axle/Diff Fluid Capacity14.3 gal
Cooling System Fluid Capacity18.5 gal
Transmission Fluid Capacity9.3 gal

Engine

Engine specifications
Engine ModelTD 122 KHE
Displacement733 in³
Power Measured @2,100 rpm
Gross Power284.0 hp
Net Power269.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @900 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity82.8 gal/min
Raise Time6.6 s
Lower Time3.5 s
Dump Time2.5 s
Relief Valve Setting3,363 psi
Pump Typedouble vane pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab141 in
Wheelbase141 in
Width Over Tires117 in
Reach at Max Lift and Dump53 in
Length with Bucket on Ground337 in
Hinge Pin - Max Height176 in

Transmission

Transmission specifications
Max Speed - Forward21.9 mph
Max Speed - Reverse15.0 mph
Transmission TypeVolvo HT220 automatic power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped6.30 yd³
Dump Clearance at Max Raise121 in
Bucket Width126 in
