Volvo

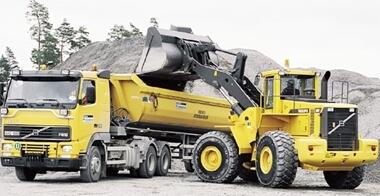

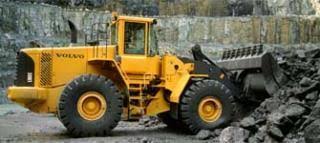

L180D
- Operating Weight
- 58,136 lb
- Bucket Capacity - heaped
- 5.49 yd³
- Gross Power
- 284.0 hp
- Net Power
- 280.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 58,136 lb |
|---|---|
| Fuel Capacity | 84.1 gal |
| Tire Size | 26.5R25*L3 |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 46,319 lb |
| Operating Voltage | 24 V |
| Turning Radius | 293 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 14.6 gal |
| Rear Axle/Diff Fluid Capacity | 14.3 gal |
| Cooling System Fluid Capacity | 21.2 gal |
| Transmission Fluid Capacity | 10.1 gal |
Engine
| Engine Model | TD 122 |
|---|---|
| Displacement | 732 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 284.0 hp |
| Net Power | 280.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 900 rpm |
Hydraulic System
| Pump Flow Capacity | 82.7 gal/min |
|---|---|
| Raise Time | 6.6 s |
| Lower Time | 3.5 s |
| Dump Time | 2.5 s |
| Relief Valve Setting | 3,263 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 141 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 55 in |
| Length with Bucket on Ground | 348 in |
| Hinge Pin - Max Height | 178 in |
Transmission
| Max Speed - Forward | 21.9 mph |
|---|---|
| Max Speed - Reverse | 21.9 mph |
| Transmission Type | Volvo HT220 automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.49 yd³ |
|---|---|
| Dump Clearance at Max Raise | 126 in |
| Bucket Width | 126 in |
