Volvo
L180G
- Operating Weight
- 58,334 lb
- Bucket Capacity - heaped
- 5.79 yd³
- Gross Power
- 330.0 hp
- Net Power
- 328.0 hp
1 / 5

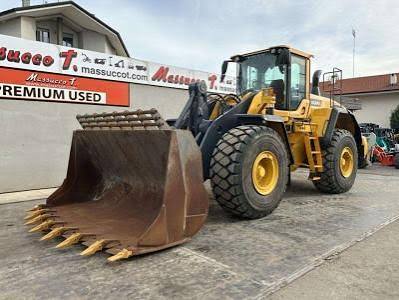

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 58,334 lb |
|---|---|
| Fuel Capacity | 88.5 gal |
| Tire Size | 26.5 R25 L3 |
| Hydraulic System Fluid Capacity | 41.3 gal |
| Static Tipping Weight | 46,473 lb |
| Operating Voltage | 24 V |
| Turning Radius | 294 in |
| Engine Oil Fluid Capacity | 13.3 gal |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 11.9 gal |
| Rear Axle/Diff Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 12.2 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | D13H-E |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 1,300 rpm |
| Gross Power | 330.0 hp |
| Net Power | 328.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,000 rpm |
Hydraulic System
| Pump Flow Capacity | 53.4 gal/min |
|---|---|
| Raise Time | 6.4 s |
| Lower Time | 3.3 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 4,496 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 141 in |
| Width Over Tires | 118 in |
| Reach at Max Lift and Dump | 56 in |
| Length with Bucket on Ground | 355 in |
| Hinge Pin - Max Height | 176 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Transmission Type | Volvo HTL 221 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.79 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Bucket Width | 127 in |
