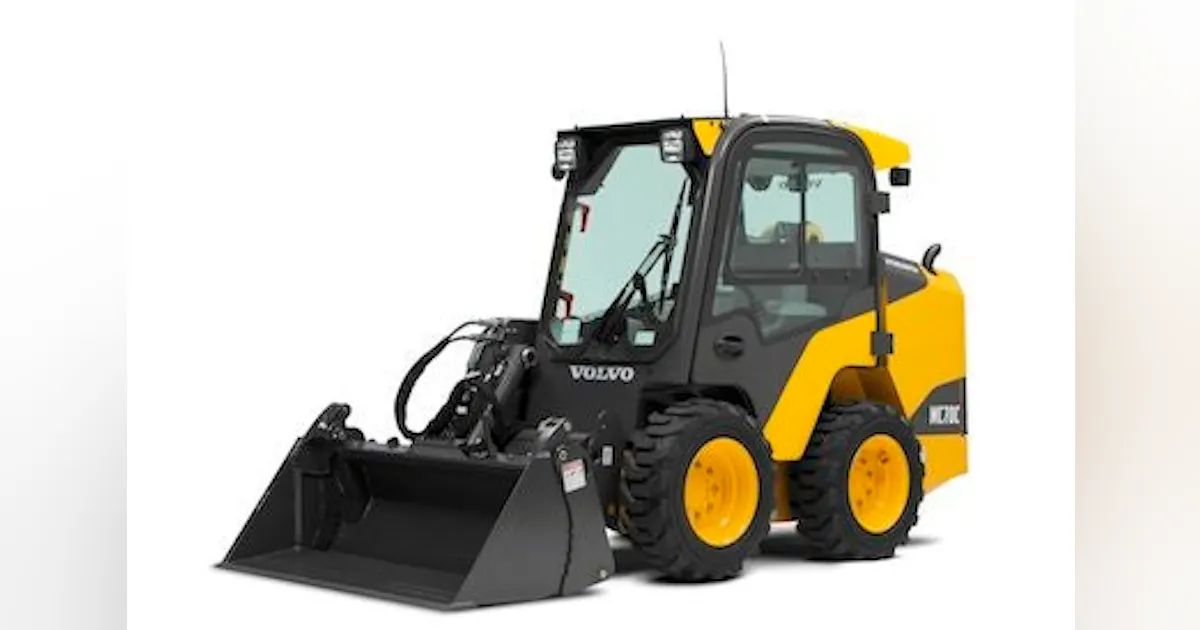

VolvoVolvo
MC70C
Skid Steer Loader
65 specifications
1 / 5
Image 1 of 5
Specifications
63 data points
Engine
| Engine Model | KDI 1903 TCR |
|---|---|
| Displacement | 114 in³ |
| Gross Power | 35.5 hp |
| Number of Cylinders | 3 |
| Aspiration | Turbo |
| Max Torque | 166 lb-ft |
| Fuel Type | Diesel |
| Alternator | 288,000 A |
| Battery | 12 - 109 (V - Ah) |
| Starter | 2.8 hp |
| Gross horsepower - SAE J1995 | 36.0 hp |
Weights
| Weight | 6,153 lb |
|---|
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 43 in |
| Overall Height | 78 in |
| Turning Radius | 66 in |
| Dump Height | 4 in |
| Dump angle | 42 ° |
| Angle of departure | 25 ° |
| Height to Hinge Pin | 5 in |
| Overall length (W/bucket) | 138 in |
| Overall length (L/bucket) | 108 in |
| Dump reach | 22 in |
| Turning radius front L/bucket | 41 in |
| Turning radius front W/bucket | 83 in |
| Attachment roll back angle | 30 ° |
Fluid Capacities
| Fuel Tank | 25.9 gal |
|---|---|
| Hydraulic system | 43.5 gal |
| Cooling system | 2.7 gal |
| Engine oil w/ filter change | 2.6 gal |
| Hydraulic oil reservoir | 26.0 gal |
Bucket
| Breakout force, lift | 3,175 lb |
|---|---|
| Landscape Bucket Width | 55 in |
| Breakout force, curl | 4,012 lb |
| General Purpose Bucket Heaped | 0.50 yd³ |
| General Purpose Bucket Height | 22 in |
| General Purpose Bucket Length | 32 in |
| General Purpose Bucket Weight | 300 lb |
| General Purpose Bucket Width | 55 in |
| Landscape Bucket Heaped cap | 0.60 yd³ |
| Landscape Bucket Height | 22 in |
| Landscape Bucket Length | 39 in |
| Landscape Bucket Weight | 0 in³ |
| Multi Purpose Bucket Heaped cap | 0.50 yd³ |
| Multi Purpose Bucket Height | 28 in |
| Multi Purpose Bucket Length | 39 in |
| Multi Purpose Bucket Weight | 448 lb |
| Multi Purpose Bucket Width | 55 in |
General Specifications
| Engine Power HP (KW) | 48 (36) — Starting 2016 Model Year |
|---|---|
| Operating Width IN. (CM) | 59.8 (152) — Starting 2016 Model Year |
| OPERATING LOAD LBS. (KG) | 1350 (612) — Starting 2016 Model Year |
Loader
| Operating Load Rating | 1,350 lb |
|---|---|
| Operating Width | 60 in |
| Bucket Width | 60 in |
| Standard hydraulic pump output | 18.5 gal/min |
| System pressure | 230 psi |
Performance
| Curl | 1.4 s |
|---|---|
| Dump | 1.8 s |
| Lift arm path | Radial |
| Lower (power down) | 1.4 s |
| Raise (lifting) | 2.8 s |
| Rated operating capacity (ISO 14397) | 2,990 lb |
Speeds
| Single speed | 12.0 mph |
|---|
