Hesston
8250
Mower Conditioner
22 specifications
Westward
9352C
- Operating Weight w/o Attachment
- 8,516 lb
- Max Speed
- 15.5 mph
- Displacement
- 275 in³
- Power
- 108.0 hp
1 / 5

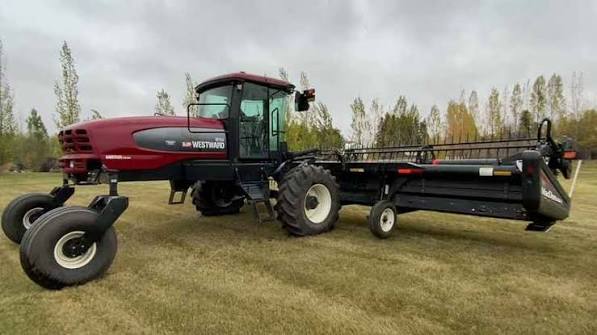

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight w/o Attachment | 8,516 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Front Tire Size | 560-65D24 Turf-Tread |
| Rear Tire Size | 7.5L-16 |
| Alternator Supplied Amperage | 130 A |
Engine
| Displacement | 275 in³ |
|---|---|
| Power | 108.0 hp |
| Aspiration | Turbocharge |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 43 in |
|---|---|
| Wheelbase | 134 in |
| Front Wheel Tread Width | 117 in |
| Rear Wheel tread Width - max | 120 in |
| Rear Wheel Tread Width - min | 120 in |
Transmission
| Max Speed | 15.5 mph |
|---|---|
| Final Drive Type | Planetary Gear Reduction RR Super-Duty Power Hub |
| Transmission Type | Two Speed |
