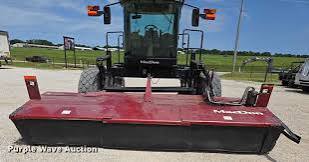

Hesston
8250
Mower Conditioner
22 specifications
Westward
M200
- Operating Weight w/o Attachment
- 11,000 lb
- Max Speed
- 23.0 mph
- Displacement
- 403 in³
- Power
- 213.0 hp
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight w/o Attachment | 11,000 lb |
|---|---|
| Fuel Capacity | 97.0 gal |
| Front Tire Size | 18.4 x 26 Bar or turf |
| Rear Tire Size | 10 x 16 |
| Alternator Supplied Amperage | 135 A |
| Operating Voltage | 24 V |
Engine
| Displacement | 403 in³ |
|---|---|
| Power | 213.0 hp |
| Aspiration | Turbocharge |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
Dimensions
| Ground Clearance | 46 in |
|---|---|
| Wheelbase | 156 in |
| Front Wheel Tread Width | 134 in |
| Rear Wheel tread Width - max | 134 in |
| Rear Wheel Tread Width - min | 95 in |
Transmission
| Max Speed | 23.0 mph |
|---|---|
| Final Drive Type | Planetary Gear Reduction |
| Transmission Type | Hydrostatic 3 speed electric shift motors |
