Yanmar

221

Tractor

Power Measured @
3,200 rpm
Gross Power
21.5 hp
All tractors

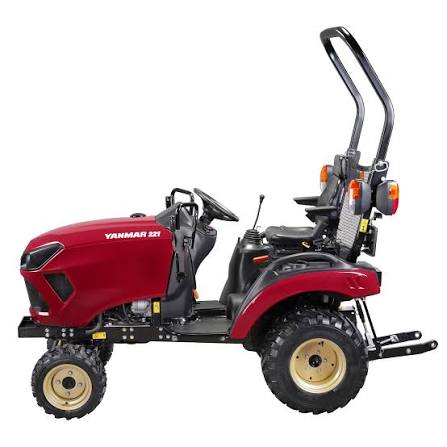

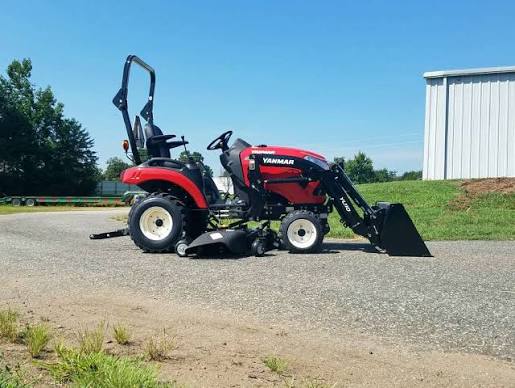

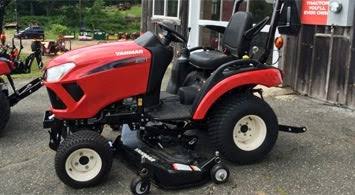

Yanmar 221 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity6.1 gal
3 Point Hitch TypeLimited Category 1
Tire Size Front - 2wd / 4wd18x8.50-10 4PR
Engine Oil Capacity0.8 gal
Front axle0.8 gal
Transmission case4.1 gal

Engine

Engine specifications
Engine Model3TNM74F
Power Measured @3,200 rpm
Gross Power21.5 hp
Net Power19.4 hp
Number of Cylinders3
Max Torque39 lb-ft
Engine MakeYanmar
PTO Power15.6 hp
Fuel TypeDiesel
Battery540 CCA

Dimensions

Dimensions specifications
Ground Clearance7 in
Wheelbase55 in
Overall Length102 in
Overall Width48 in
Tread with R4-Rear35 in
Tread with R4-Front35 in

Transmission

Transmission specifications
Max Speed - Reverse6.3 mph
Transmission TypeHydrostatic Transmission
Maximum forward speed, Gear8.6 mph
ROPS, R4 Tires1,537 lb

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size26x12.0-12 4PR

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
Rear PTO554/3200
Mid- PTO2057/3200
