Yanmar

424

Tractor

Power Measured @
3,200 rpm
Gross Power
23.9 hp
All tractors

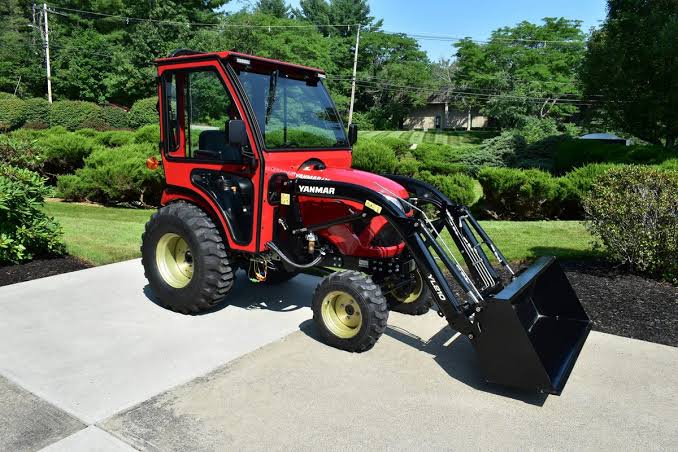

Yanmar 424 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity6.1 gal
3 Point Hitch TypeLimited Category 1
Tire Size Front - 2wd / 4wd18x8.50-10 4PR
Engine Oil Capacity0.9 gal
Front axle1.0 gal
Transmission case4.1 gal

Engine

Engine specifications
Engine Model3TNV80F
Power Measured @3,200 rpm
Gross Power23.9 hp
Net Power21.7 hp
Number of Cylinders3
Max Torque46 lb-ft
Engine MakeYanmar
PTO Power13.5 hp
Stroke3 in
Bore3 in
Fuel TypeDiesel
Battery540 CCA

Dimensions

Dimensions specifications
Ground Clearance10 in
Wheelbase64 in
Overall Length106 in
Overall Width55 in
Tread with R4-Rear41 in
Tread with R4-Front38 in
Overall Height-with R4 Tires, Top Of Steering Wheel87 in

Transmission

Transmission specifications
Max Speed - Reverse9.1 mph
Transmission TypeHydrostatic Transmission
Maximum forward speed, Gear13.1 mph
ROPS, R4 Tires1,537 lb

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size26x12.0-12 4PR

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
Rear PTO554/3200
Mid- PTO2057/3200
