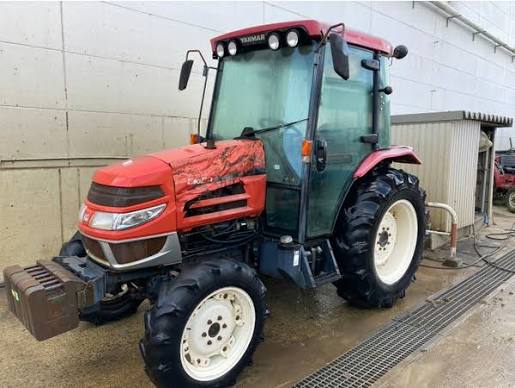

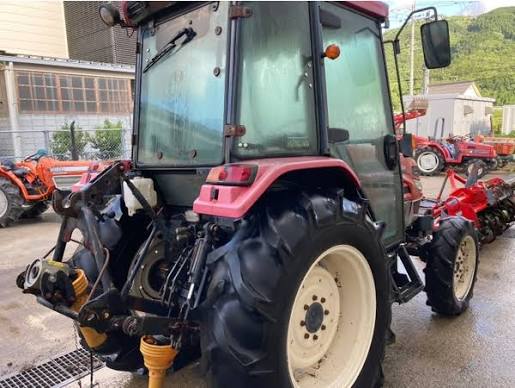

Yanmar
Fendt
209 VA
Tractor
19 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 5,005 lb |
|---|---|
| Fuel Capacity | 17.2 gal |
| Turning Radius | 115 in |
Engine
| Engine Model | 4TNV98 |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 59.2 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 10.0 gal/min |
|---|
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 79 in |
| Overall Length | 12 in |
| Tire Size | Front 8.3 - 20 Rear 12.4-32 |
| Width Outside Frame | 65 in |
Transmission
| Max Speed | 18.4 mph |
|---|---|
| Number of Forward Gears | 20 |
| Transmission Type | Partial Synchro - mesh |
| Number of Reverse Gears | 20 |
