Yanmar

VIO55-5B

Mini Excavator

Operating Weight
11,861 lb
Max Digging Depth
157 in
Net Power
39.5 hp
All mini excavators

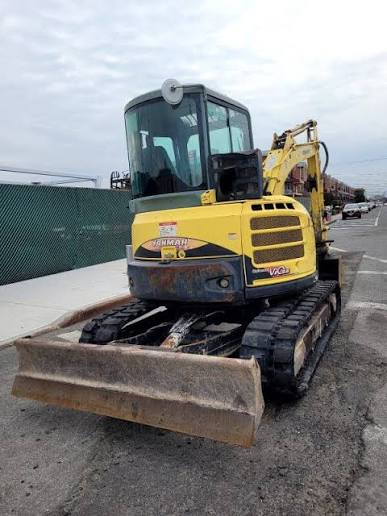

Yanmar VIO55-5B Mini Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,861 lb
Fuel Capacity17.0 gal
Hydraulic Pump Flow Capacity21.3 gal/min
Hydraulic System Relief Valve Pressure3,553 psi

Engine

Engine specifications
Engine Model4TNV88-BXBV
Power Measured @2,400 rpm
Net Power39.5 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Tail Swing Radius40 in
Width to Outside of Tracks79 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.7 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth157 in
Max Reach Along Ground245 in
Max Vertical Wall Digging Depth115 in
Max Loading Height174 in
Shipping Length of Unit220 in
Max Cutting Height254 in
Shipping Height of Unit103 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
