Agco

ST28a

Tractor

Operating Weight
2,425 lb
Displacement
89 in³
Power Measured @
2,500 rpm
Gross Power
28.4 hp
All tractors

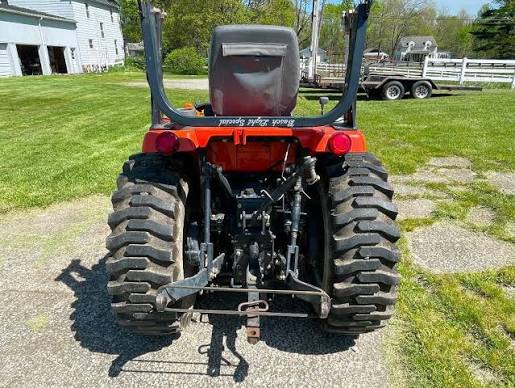

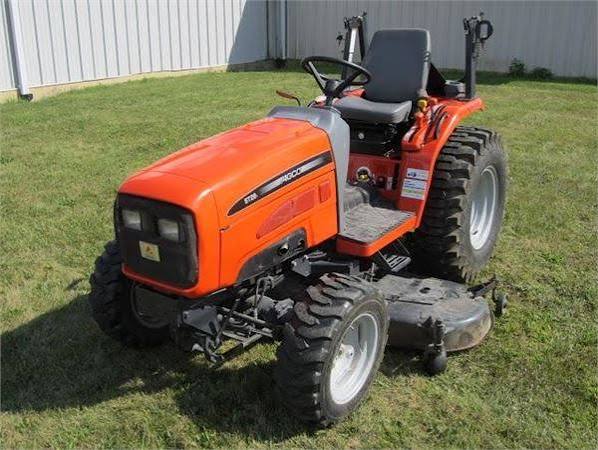

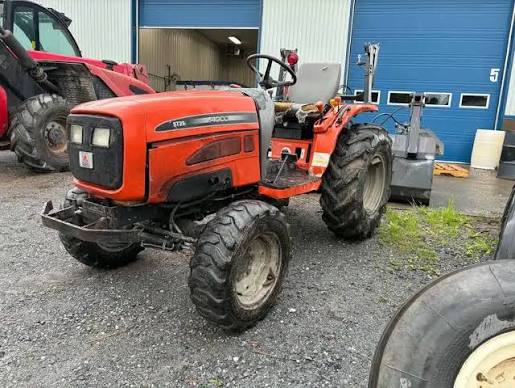

Agco ST28a Tractor
1 / 5
Image 1 of 5
Image: m.farms.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,425 lb
3 Point Hitch Lift Capacity @ 24 inches1,609 lb
3 Point Hitch TypeCat I

Engine

Engine specifications
Displacement89 in³
Power Measured @2,500 rpm
Gross Power28.4 hp
Aspirationnatural
PTO Power24.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity7.4 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase66 in
Overall Length9 in
Tire SizeAg R1
Width Outside Frame54 in

Transmission

Transmission specifications
Number of Forward Gears9
Transmission Typehydrostatic
Number of Reverse Gears3
