Agrale
Kubota
B2920
Tractor
23 specifications

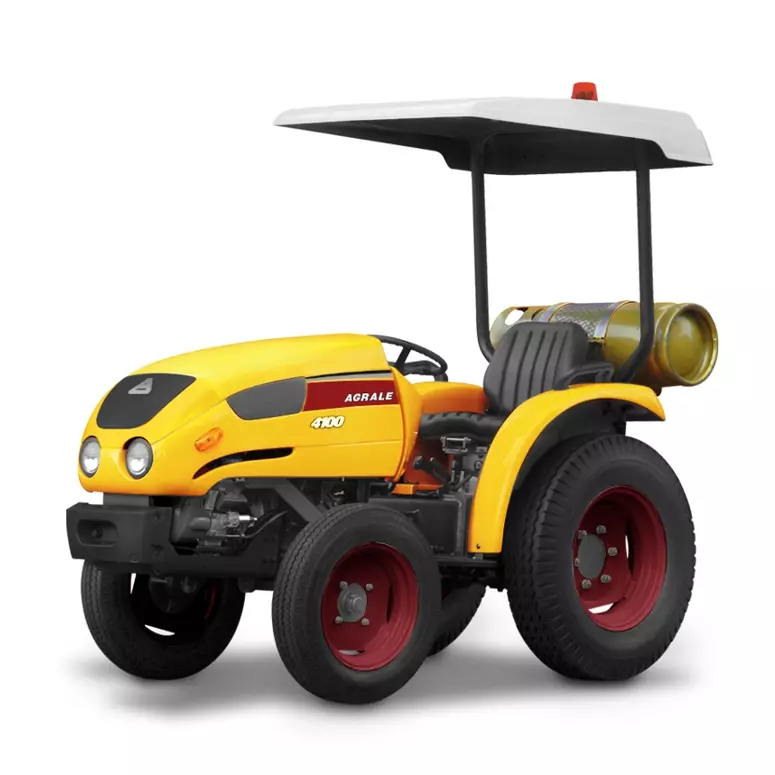

Agrale
4100 Industrial
- Operating Weight
- 2,205 lb
- Displacement
- 41 in³
- Power Measured @
- 2,750 rpm
- Gross Power
- 14.7 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 2,205 lb |
|---|---|
| Turning Radius | 85 in |
| Alternator Supplied Amperage | 55 A |
| Operating Voltage | 14 V |
| Tire Size Front - 2wd / 4wd | 5.60x15 |
Engine
| Engine Model | M-93 ID |
|---|---|
| Displacement | 41 in³ |
| Power Measured @ | 2,750 rpm |
| Gross Power | 14.7 hp |
| Number of Cylinders | 1 |
| Torque Measured @ | 2,350 rpm |
| Max Torque | 29 lb-ft |
Dimensions
| Wheelbase | 48 in |
|---|---|
| Overall Length | 8 in |
| Overall Width | 47 in |
| Height | 48 in |
Transmission
| Max Speed | 8.8 mph |
|---|---|
| Number of Forward Gears | 7 |
| Number of Reverse Gears | 3 |
Tires & Wheels
| Rear Tires Size | 7.50x18 |
|---|
