ASV

PT-50

Compact Track Loader

Operating Weight
6,200 lb
Max Speed - high range
8.0 mph
Displacement
134 in³
Gross Power
50.0 hp
All compact track loaders
ASV PT-50 Compact Track Loader
1 / 5
Image 1 of 5
Image: trackloaderparts.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,200 lb
Max Speed - high range8.0 mph
Fuel Capacity15.0 gal
Hydraulic System Fluid Capacity8.0 gal
Cooling System Fluid Capacity2.0 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Capacity11.2 gal

Engine

Engine specifications
Engine Model404C-22
Displacement134 in³
Power Measured @2,800 rpm
Gross Power50.0 hp
AspirationNatural
Peak Torque105 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow16.3 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab78 in
Width Over Tracks60 in
Length with Bucket128 in
Clearance at Max Lift and Dump115 in
Length - without Bucket101 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground60 in
Width of Track15 in
Number of Track Rollers per Side12
Ground Contact Area1,770 in³

Loader

Loader specifications
Tipping Angle3,800 °
Operating Load1,900 lb

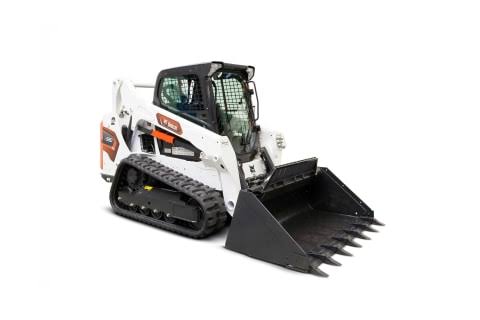

Comparable machines
