ASV

SR-70

Compact Track Loader

Operating Weight
7,890 lb
Displacement
201 in³
Gross Power
71.0 hp
All compact track loaders

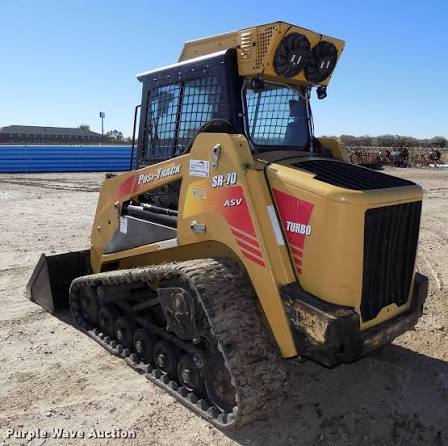

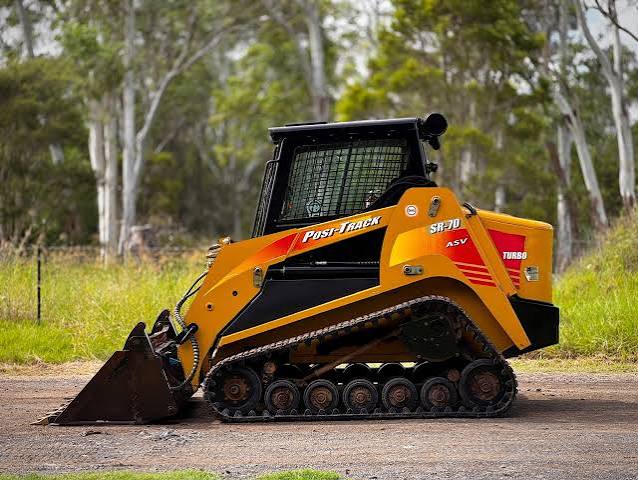

ASV SR-70 Compact Track Loader
1 / 5
Image 1 of 5
Image: farmprogress.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,890 lb
Fuel Capacity18.0 gal
Hydraulic System Fluid Capacity21.0 gal

Engine

Engine specifications
Engine Model804C-33T
Displacement201 in³
Power Measured @2,600 rpm
Gross Power71.0 hp
Net Power68.0 hp
Number of Cylinders4
Aspirationturbocharged
Peak Torque173 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow30.0 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab86 in
Reach at Max Lift and Dump20 in
Width Over Tracks66 in
Length with Bucket142 in
Clearance at Max Lift and Dump98 in
Length - without Bucket113 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground72 in
Width of Track15 in
Ground Contact Area2,124 in³
Track Gauge52 in

Loader

Loader specifications
Tipping Angle5,500 °
Operating Load2,750 lb
