Bobcat

A770

Skid Steer Loader

Operating Weight
9,623 lb
Max Speed
7.4 mph
Gross Power
92.0 hp
All skid steer loaders

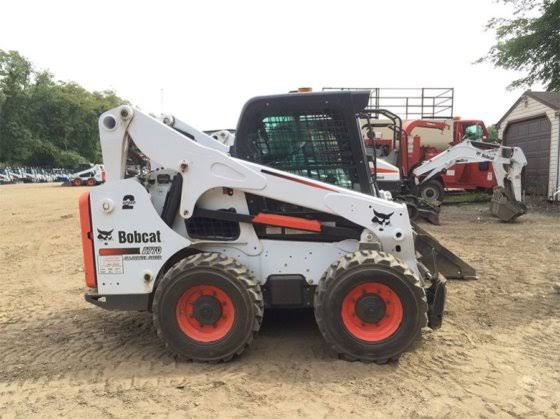

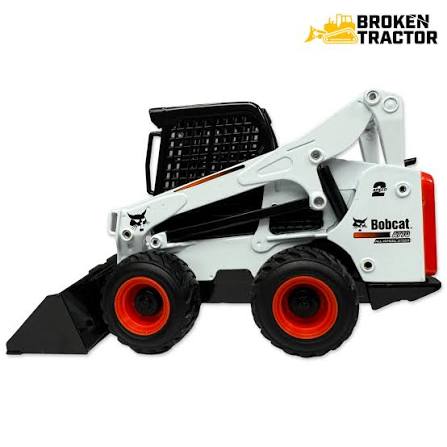

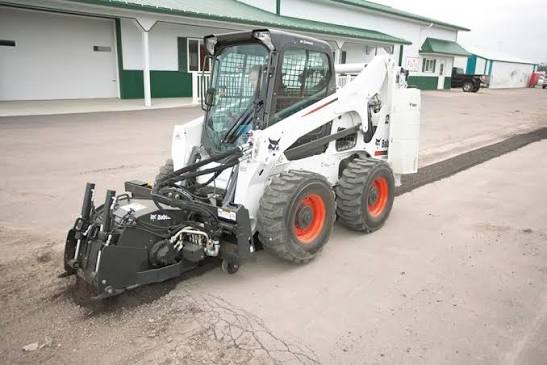

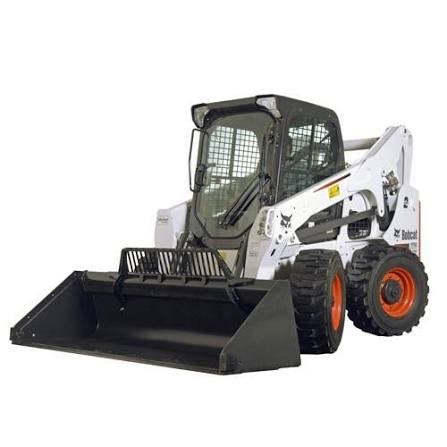

Bobcat A770 Skid Steer Loader
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,623 lb
Max Speed7.4 mph
Fuel Capacity23.9 gal
Lift Arm PathVertical

Engine

Engine specifications
Gross Power92.0 hp
AspirationTurbocharged
Fuel TypeTurbo Diesel
Emission Tier LevelTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,500 psi
Main pump flow standard23.0 gal/min
Main pump flow optional36.6 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase49 in
Width Over Tires76 in
Reach at Max Lift and Dump32 in
Length with Bucket142 in
Turning Radius from Center - inc bucket86 in
Turning Radius from Center - machine rear152 in
Length w/o Bucket115 in

General Specifications

General Specifications specifications
Engine Power HP (KW)92 (68.6) — Starting 2019 Model Year
Operating Width IN. (CM)74.7 (189.7) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)3,325 (1,508) — Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%3,325 (1,508) — Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating700 lb
Tipping Angle6,650 °
Operating Width74 in
Bucket Width68 in
Loader SeriesM2-Series
Height to hinge pin120 in
