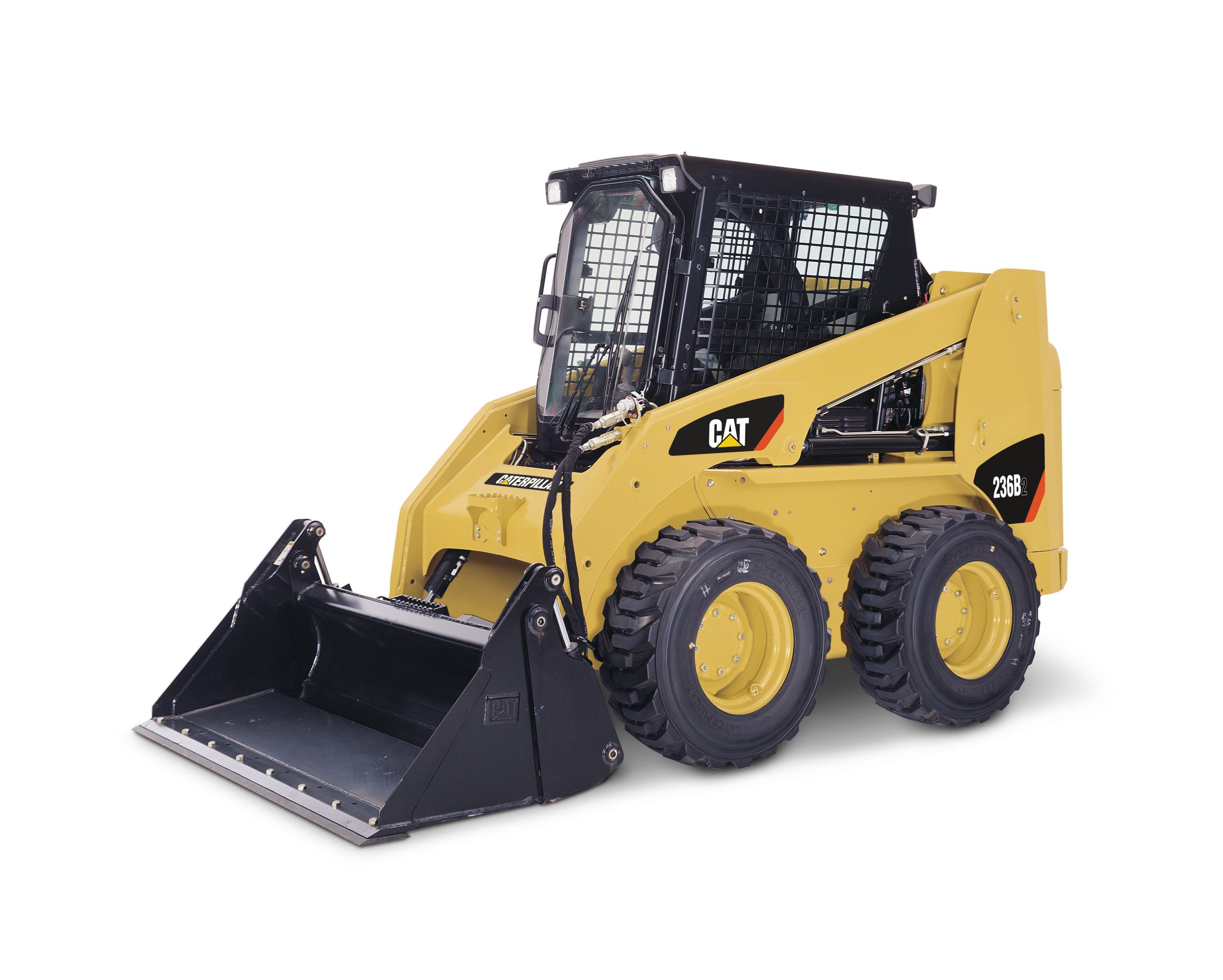

236B II

Specifications

74 data points

Operating Specifications specifications
Operating Weight	7,007 lb
Max Speed	7.5 mph
Fuel Capacity	23.8 gal
Hydraulic System Fluid Capacity	13.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Fluid Capacity	2.6 gal
Cooling System Fluid Capacity	2.6 gal
Chain Box Fluid Capacity - each side	1.8 gal
Breakout Force - Tilt Cylinder	5,484 lb
Rated Operating Capacity	1,950 lb
Tipping Load	3,900 lb
Rated Operating Capacity with Optional Counterweight	2,050 lb

Weights specifications
Operating Weight	7,007 lb

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	83 in
Wheelbase	46 in
Width Over Tires	66 in
Reach at Max Lift and Dump	21 in
Length with Bucket on Ground	138 in
Length with Bucket	138 in
Clearance at Max Lift and Dump	95 in
Turning Radius from Center - inc bucket	83 in
Turning Radius from Center - machine rear	64 in
Length w/o Bucket	110 in
Length - without Bucket	110 in
Wheel Base	46 in
Bucket Pin Height - Maximum Lift	122 in
Maximum Overall Height	156 in
Bucket Pin Height - Carry Position	10 in
Clearance at Maximum Lift and Dump	94 in
Reach - Maximum Lift/Dump	21 in
Turn Radius from Center - Bucket	83 in
Turn Radius from Center - Coupler	52 in
Turn Radius from Center - Rear	64 in
Maximum Reach - With Arms Parallel	53 in
Rack Back Angle - Maximum Height	97 °
Maximum Dump Angle	40 °
Departure Angle	28 °
Vehicle Width over Tires	66 in
Bumper Overhang - Rear Axle	41 in
