Bobcat

S250

Skid Steer Loader

Operating Weight
7,825 lb
Bucket Capacity
0.60 yd³
Max Speed
12.0 mph
Gross Power
75.0 hp
All skid steer loaders

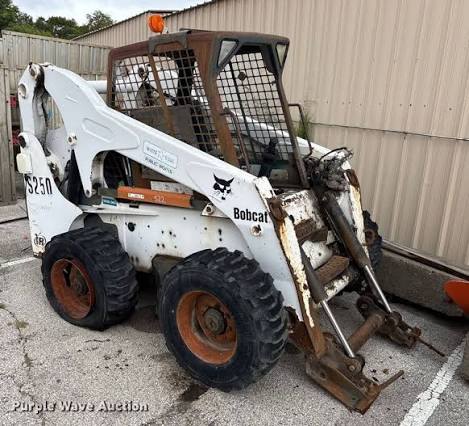

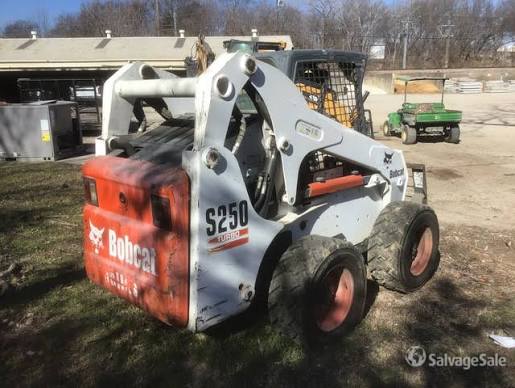

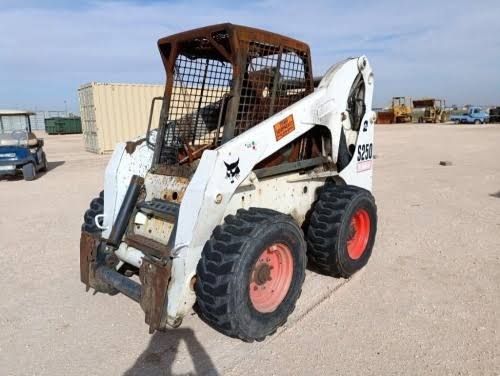

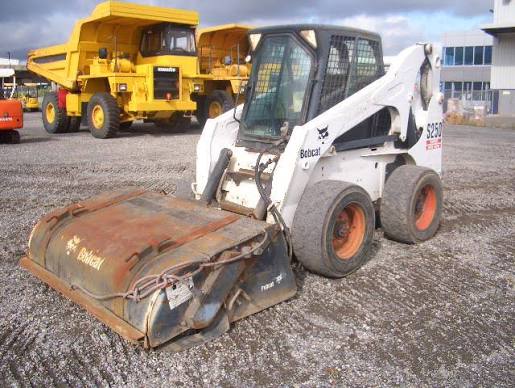

Bobcat S250 Skid Steer Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,825 lb
Max Speed12.0 mph
Operating Speed6.9 mph

Engine

Engine specifications
Engine ModelV3300-DI-T
Displacement201 in³
Power Measured @2,800 rpm
Gross Power75.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.7 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase49 in
Width Over Tires72 in
Reach at Max Lift and Dump22 in
Length with Bucket144 in
Clearance at Max Lift and Dump100 in
Turning Radius from Center - machine rear84 in
Length w/o Bucket115 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating2,500 lb
Tipping Angle5,661 °
