Bobcat

E63

Mini Excavator

Operating Weight
13,779 lb
Max Digging Depth
162 in
Net Power
59.4 hp
All mini excavators

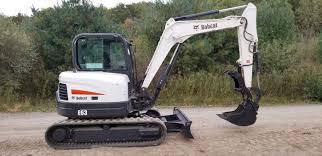

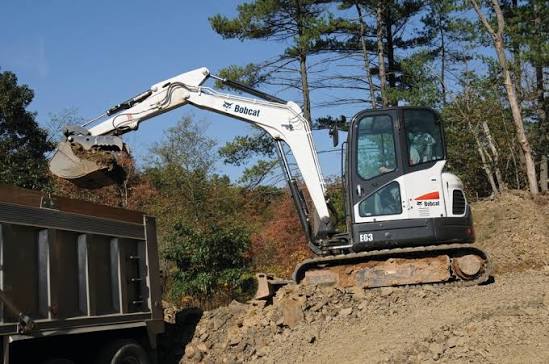

Bobcat E63 Mini Excavator
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,779 lb
Fuel Capacity20.6 gal

Engine

Engine specifications
Power Measured @2,100 rpm
Net Power59.4 hp
AspirationTier 4
FuelDiesel

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.5 gal/min
Standard pressure3,046 psi

Dimensions

Dimensions specifications
Height - Top of Cab101 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Min Travel Speed1.6 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground245 in
Max Cutting Height168 in
Boom Swing - Left70 °
Boom Swing - Right50 °

Bucket

Bucket specifications
Bucket digging Force - SAE9,731 lb
Arm digging Force5,767 lb
