Bobcat

S175

Skid Steer Loader

Operating Weight
6,220 lb
Max Speed
11.1 mph
Gross Power
46.0 hp
All skid steer loaders

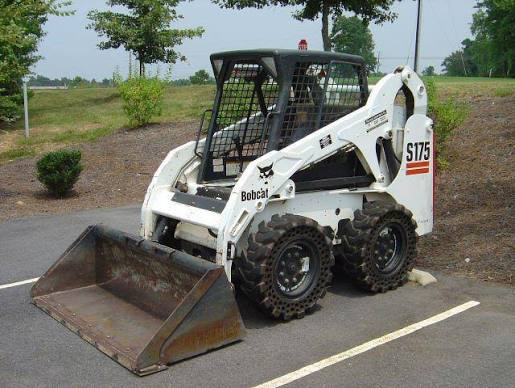

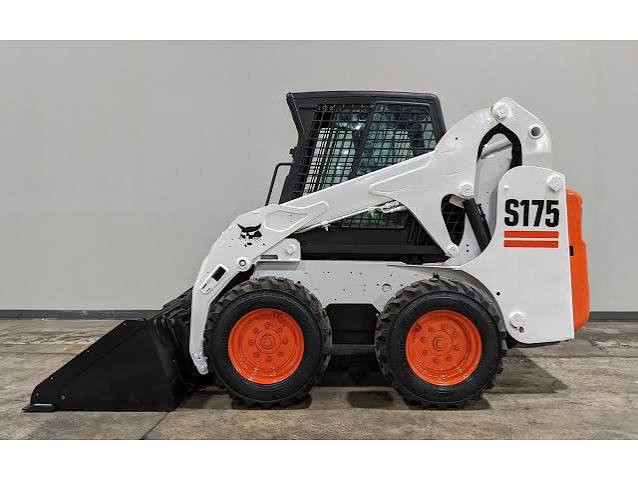

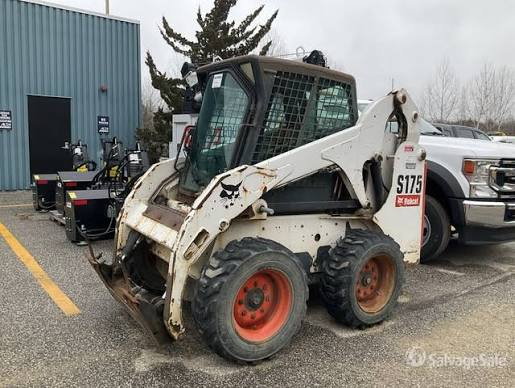

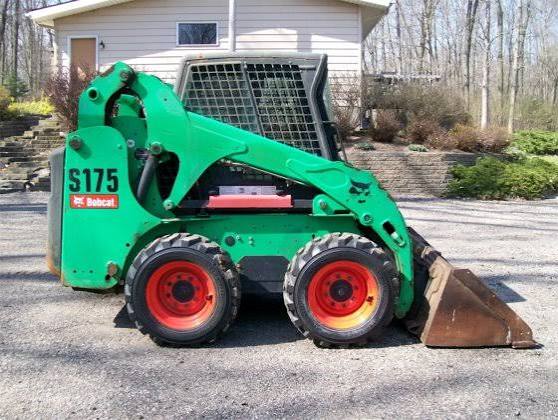

Bobcat S175 Skid Steer Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,220 lb
Max Speed11.1 mph
Fuel Capacity24.1 gal
Operating Speed7.3 mph

Engine

Engine specifications
Engine ModelV2203-M-DI
Gross Power46.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.9 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Height - Top of Cab77 in
Wheelbase41 in
Width Over Tires66 in
Reach at Max Lift and Dump30 in
Length with Bucket131 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - machine rear79 in
Length w/o Bucket102 in

Loader

Loader specifications
Operating Load Rating1,750 lb
Tipping Angle4,076 °
Operating Width68 in
