Bobcat

S185

Skid Steer Loader

Operating Weight
6,220 lb
Bucket Capacity
0.50 yd³
Max Speed
11.1 mph
Gross Power
56.0 hp
All skid steer loaders

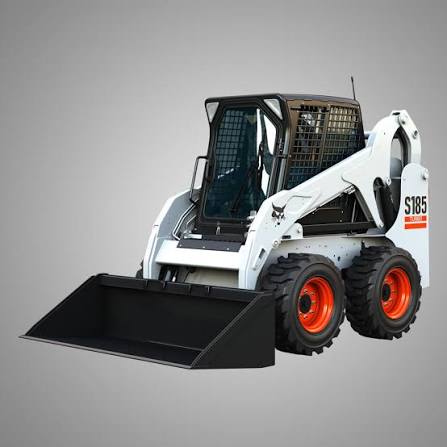

Bobcat S185 Skid Steer Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,220 lb
Max Speed11.1 mph
Fuel Capacity24.1 gal
Operating Speed7.3 mph

Engine

Engine specifications
Engine ModelV2003-M-DI-T
Displacement122 in³
Power Measured @2,800 rpm
Gross Power56.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.9 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab77 in
Wheelbase41 in
Width Over Tires66 in
Reach at Max Lift and Dump30 in
Length with Bucket131 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - machine rear79 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,850 lb
Tipping Angle4,076 °
Operating Width68 in
