Bobcat

S205

Skid Steer Loader

Operating Weight
6,655 lb
Bucket Capacity
0.60 yd³
Max Speed
10.7 mph
Gross Power
61.0 hp
All skid steer loaders

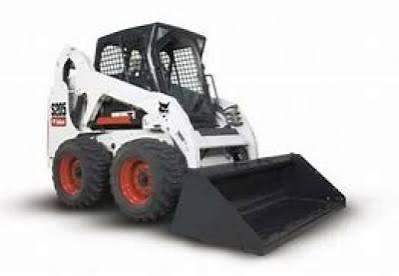

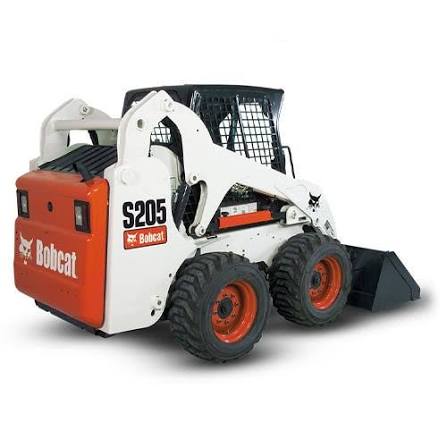

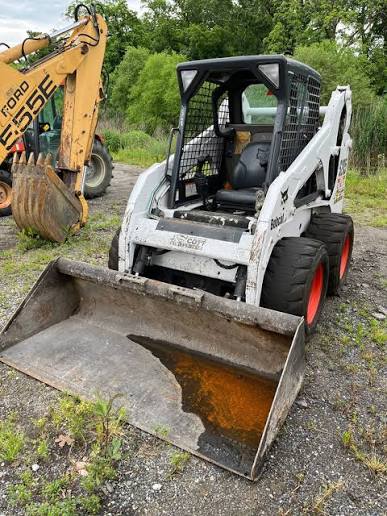

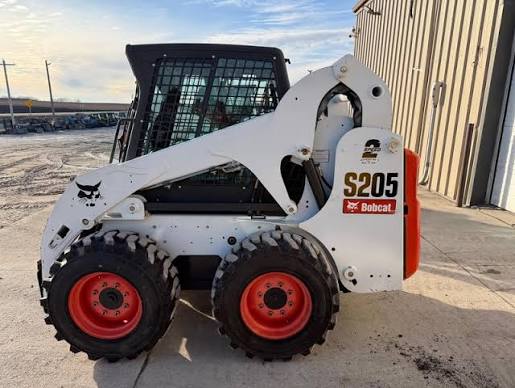

Bobcat S205 Skid Steer Loader
1 / 5
Image 1 of 5
Image: gamrentals.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,655 lb
Max Speed10.7 mph
Fuel Capacity24.1 gal
Operating Speed7.0 mph

Engine

Engine specifications
Engine ModelV2403-M-DI-T
Displacement147 in³
Power Measured @2,700 rpm
Gross Power61.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.3 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab77 in
Wheelbase41 in
Width Over Tires66 in
Reach at Max Lift and Dump30 in
Length with Bucket131 in
Clearance at Max Lift and Dump91 in
Turning Radius from Center - inc bucket79 in
Length w/o Bucket102 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating2,050 lb
Tipping Angle4,100 °
Operating Width68 in
