Bobcat

S220

Skid Steer Loader

Operating Weight
7,483 lb
Max Speed
12.0 mph
Gross Power
75.0 hp
All skid steer loaders

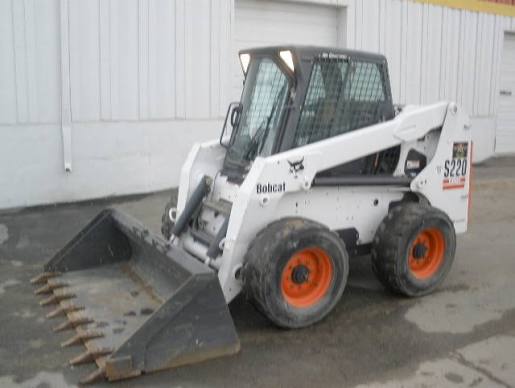

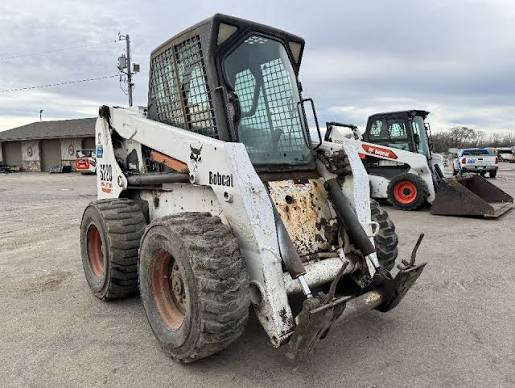

Bobcat S220 Skid Steer Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,483 lb
Max Speed12.0 mph
Fuel Capacity23.0 gal
Operating Speed6.9 mph

Engine

Engine specifications
Engine ModelV3300-DI-T
Gross Power75.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.7 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab81 in
Wheelbase49 in
Width Over Tires73 in
Reach at Max Lift and Dump22 in
Length with Bucket144 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - machine rear84 in
Length w/o Bucket115 in

Loader

Loader specifications
Operating Load Rating2,200 lb
Tipping Angle4,561 °
