Bobcat

S300

Skid Steer Loader

Operating Weight
8,448 lb
Bucket Capacity
0.60 yd³
Max Speed
12.0 mph
Gross Power
81.0 hp
All skid steer loaders

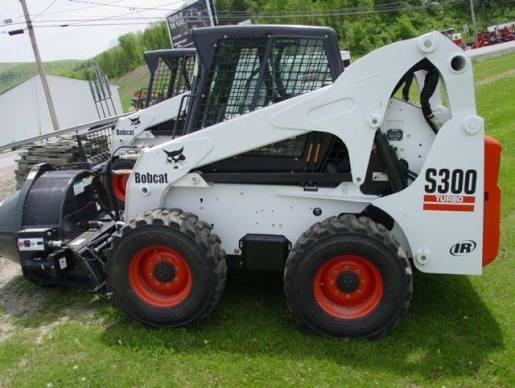

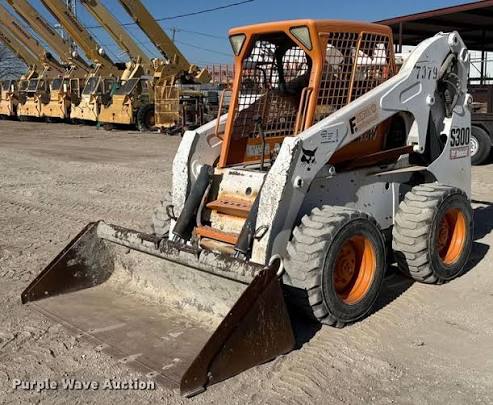

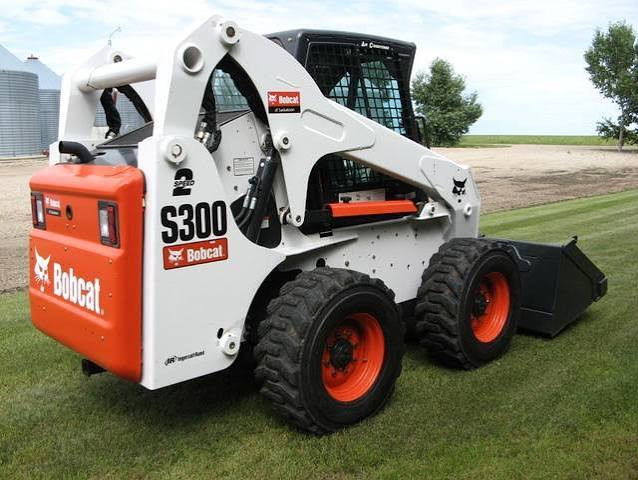

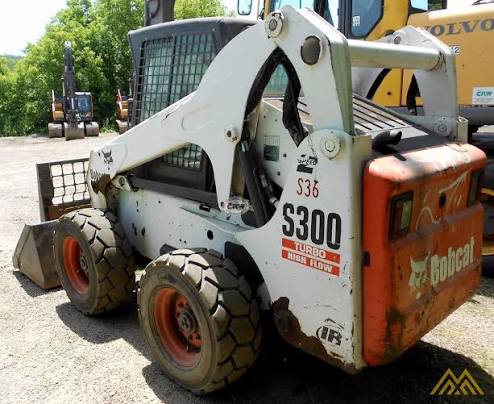

Bobcat S300 Skid Steer Loader
1 / 5
Image 1 of 5
Image: shop.bobcat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,448 lb
Max Speed12.0 mph
Fuel Capacity23.0 gal
Operating Speed6.9 mph

Engine

Engine specifications
Engine ModelV3300-DI-T
Displacement201 in³
Power Measured @2,400 rpm
Gross Power81.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.7 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase49 in
Width Over Tires73 in
Reach at Max Lift and Dump34 in
Length with Bucket144 in
Clearance at Max Lift and Dump100 in
Turning Radius from Center - machine rear84 in
Length w/o Bucket115 in

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating3,000 lb
Tipping Angle6,111 °
