Bobcat

S330

Skid Steer Loader

Operating Weight
9,185 lb
Bucket Capacity
0.71 yd³
Max Speed
12.0 mph
Gross Power
85.0 hp
All skid steer loaders

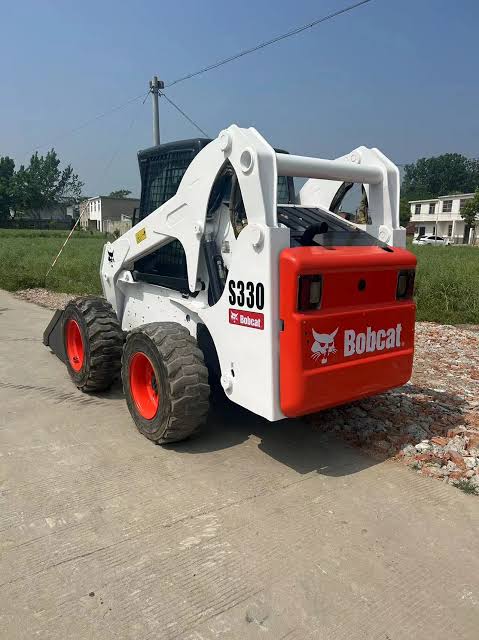

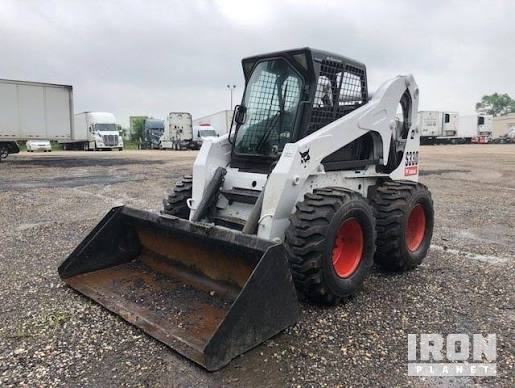

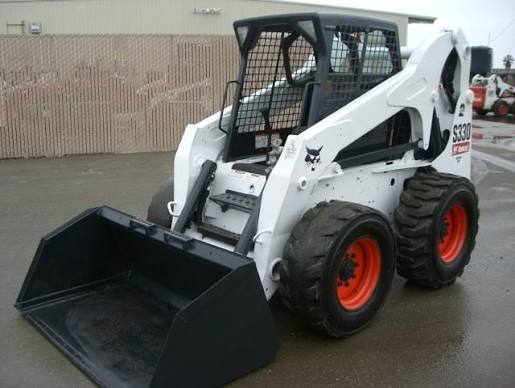

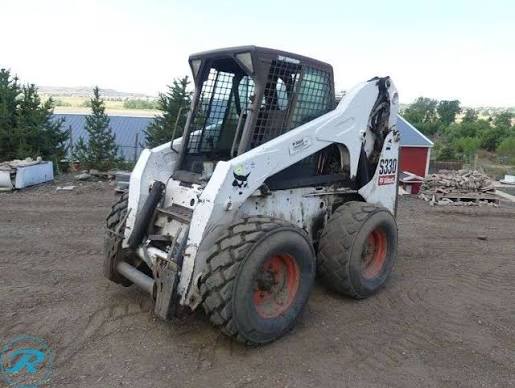

Bobcat S330 Skid Steer Loader
1 / 5
Image 1 of 5
Image: everythingattachments.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,185 lb
Max Speed12.0 mph
Operating Speed6.9 mph

Engine

Engine specifications
Engine ModelV3800-DI-T
Displacement232 in³
Power Measured @2,575 rpm
Gross Power85.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.7 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab83 in
Wheelbase49 in
Width Over Tires74 in
Reach at Max Lift and Dump31 in
Length with Bucket144 in
Clearance at Max Lift and Dump103 in
Turning Radius from Center - machine rear7 in
Length w/o Bucket115 in

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating3,300 lb
Tipping Angle6,720 °
