Bobcat

S570

Skid Steer Loader

Operating Weight
6,479 lb
Max Speed
7.4 mph
Gross Power
61.0 hp
All skid steer loaders

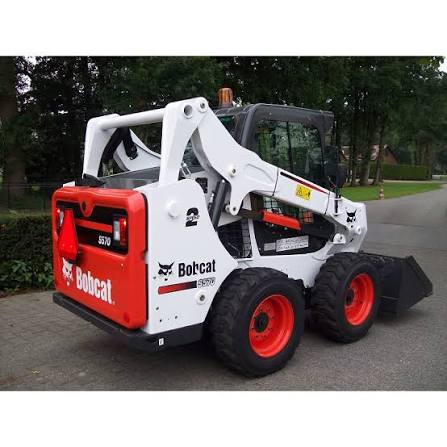

Bobcat S570 Skid Steer Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,479 lb
Max Speed7.4 mph
Fuel Capacity24.7 gal
Lift Arm PathVertical

Engine

Engine specifications
Gross Power61.0 hp
AspirationTurbocharged
Fuel TypeTurbo Diesel
Emission Tier LevelTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,500 psi
Main pump flow standard17.1 gal/min
Main pump flow optional26.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab78 in
Wheelbase43 in
Width Over Tires65 in
Reach at Max Lift and Dump33 in
Length with Bucket133 in
Clearance at Max Lift and Dump93 in
Length w/o Bucket106 in

General Specifications

General Specifications specifications
Engine Power HP (KW)61 (45.5) Starting 2019 Model Year
Operating Width IN. (CM)64.7 (164.3) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)1,950 (885) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%1,950 (885) Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating1,950 lb
Tipping Angle3,900 °
Operating Width65 in
Bucket Width68 in
Loader SeriesM2-Series
Height to hinge pin120 in
