Bobcat

S595

Skid Steer Loader

Operating Weight
6,795 lb
Max Speed
7.4 mph
Gross Power
74.0 hp
All skid steer loaders

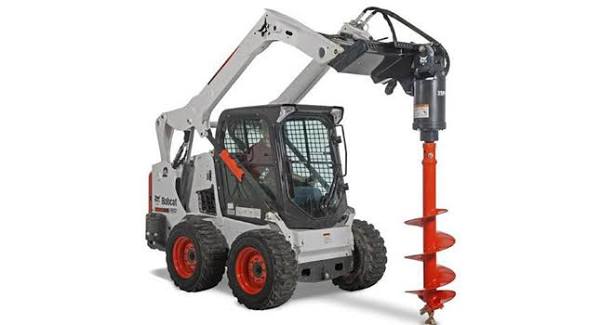

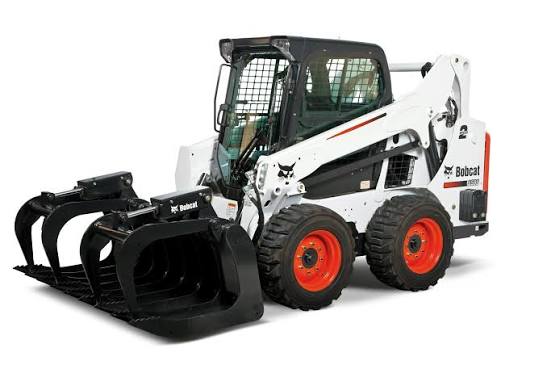

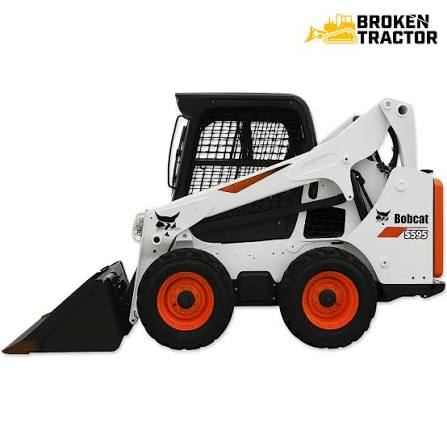

Bobcat S595 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,795 lb
Max Speed7.4 mph
Fuel Capacity24.7 gal
Lift Arm PathVertical

Engine

Engine specifications
Gross Power74.0 hp
AspirationTurbocharged
Fuel TypeTurbo Diesel
Emission Tier LevelTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,500 psi
Main pump flow standard17.1 gal/min
Main pump flow optional26.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab78 in
Wheelbase43 in
Width Over Tires66 in
Reach at Max Lift and Dump33 in
Length with Bucket133 in
Clearance at Max Lift and Dump93 in
Length w/o Bucket106 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55.2) — Starting 2019 Model Year
Operating Width IN. (CM)65.2 (165.6) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)2,200 (998) — Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%2,200 (998) — Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating2,200 lb
Tipping Angle4,398 °
Operating Width65 in
Bucket Width68 in
Loader SeriesM2-Series
Height to hinge pin120 in
